What is Stainless Steel 904L?
Designed especially for use in very corrosive surroundings Stainless Steel 904L beats grades like 316L among others. Its low carbon concentration is suitable for built structures since it maintains corrosion resistance and stops carbide precipitation during welding.

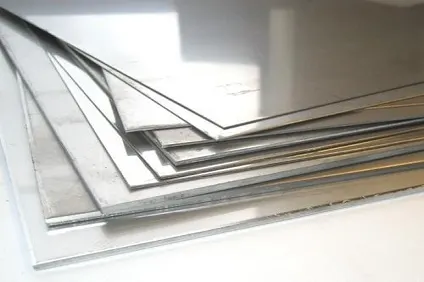

Stainless Steel 904L Plates Specifications :
Stainless Steel 904L products conform to leading global standards:
Specifications | ASTM A240 / ASME SA240 |
Thickness | 4mm-100mm |
Width | 1000mm, 1219mm, 1500mm, 1309mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
Length | 2000mm, 2440mm, 3000mm, 5309mm, 6000mm, etc |
Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand
blast, Brush, etching, etc |
Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Welded Tube) etc. |
Chemical Composition of Stainless Steel 904L Sheets & Plates
The alloy’s remarkable performance in challenging environments stems from its carefully balanced chemical makeup:
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu | |
SS 904L | Min | – | – | – | – | – | 19 | 4 | 23 | 1 |
Max | 0.02 | 2 | 1 | 0.045 | 0.035 | 23 | 5 | 28 | 2 |
904L Stainless Steel Sheet & Plates Mechanical Properties
Beyond corrosion resistance, 904L offers solid mechanical performance under stress:
Grade | Tensile strength (MPa) | Yield Strength 0.2% Proof(MPa) | Elongation (% in 50mm) | Hardness – Brinell |
904L | 490 | 220 | 36 | 70-150 |
Stainless Steel 904L Plates & SS 904L Sheets Equivalent Grade :
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | EN | EURONORM NAME |
SS 904L | 1.4539 | N08904 | – | 904S13 | – | X1NiCrMoCuN25-20-5 |
Types Of Stainless Steel 904L Plates & Sheets :
Stainless Steel 904L Plates | SS 904L plates |
Stainless Steel 904L Plates | SS 904L ASTM A240 Plates Exporter |
Stainless Steel 904L Chequered Plate | ASTM A240 SS 904L Plates Supplier |
DIN 1.4539 SS Diamond Chequered Plate | 904L SS Plates Manufacturers |
UNS N08904 SS Plate Stockholder | Cold Rolled Stainless Steel 904L Plates |
Stainless Steel Plate 2B Finish Dealer | 904L Finish Stainless Steel Plates |
Cut to Size Stainless Steel 904L Plates | Hot Rolled Stainless Steel 904L Plates |
Stainless Steel 904L CR Plates Stockist | Stainless Steel 904L HR Plates Dealer |
Leading Manufacturer Of Stainless Steel 904L Plates | ASTM A240 High Quality SS 904L Plates, |
ASME SA 240 SS 904L Plates Distributors | 904L Stainless Steel Plates Exporter |
Applications of Stainless Steel 904L Plates & Sheets
- Chemical Processing: Ideal for control of sulphuric and phosphorous acids in reactors, heat exchangers, and storage tanks.
- Oil & Gas: Utilised in equipment and offshore platforms that are subjected to seawater and sour gas.
- Marine Engineering: Great for maritime hardware, desalination facilities, and seawater cooling systems.
- Power Generation: preferred for parts used in condensers and flue gas desulfurization (FGD) systems.
- Pharmaceuticals: appropriate for corrosive processing agents in sterile settings.
- Pulp & Paper: Utilised in the treatment of caustic liquor in bleaching plants.
Key Advantages of Stainless Steel 904L
Major Benefits of Using Stainless Steel 904L:
- Excellent Corrosion Resistance: Clearly opposes both general and localised forms of corrosion including pitting and crevice corrosion even in difficult situations.
- Excellent Weldability & Fabrication: Using traditional techniques without risk of sensitizing, can be easily shaped and welded depending on low carbon content.
- Impressive High Temperature Performance: Remaining strength and corrosion resistance at rather high temperatures is impressive high-temperature performance.
- Superior Stress Corrosion Cracking Resistance: Strong resistance against chloride-induced stress corrosion cracking (SCC) makes this material fit for maritime and chemical processing systems.
- Non Magnetic In Annealed State: Because of its entirely austenitic structure—which is essential for many uses—904L remains non-magnetic in Annealed State.
- Minimal Maintenance Requirements: Less replacements and repairs resulting from its durability helps to save long-term costs.
How to Select the Right 904L Product
Key Considerations for Selecting the Right 904L Product:
- Service Environment: Assess exposure to corrosive substances, operating temperature, and pressure levels.
- Product Form: Select from available forms such as plate, sheet, pipe, tube, or bar based on application needs.
- Dimensions: Confirm the required thickness, width, and length to match project specifications.
- Surface Finish: Choose the appropriate finish (No. 1, 2B, BA, No. 4, or Mirror) for functional or aesthetic requirements.
- Standards & Certification: Ensure compliance with standards like ASTM and EN; request Mill Test Certificates (MTCs) when needed.
- Supplier Reputation: Work with trusted suppliers who offer quality assurance, proper documentation, and reliable customer support.
Where to Buy Stainless Steel 904L Plates & Sheets
To satisfy the numerous needs of many different sectors, our large inventory consists in finishes, thicknesses, and sizes over a range. Stressing technical guidance, quality assurance, and reasonable cost, we assist our customers in selecting the best fit for their particular requirement.
Frequently Asked Questions (FAQs)
What is Stainless Steel 904L used for?
Stainless Steel 904L is much used in sectors including chemical processing, maritime engineering, pharmaceuticals, oil and gas. Given their remarkable resistance to corrosion and high temperature tolerance, heat exchangers, condensers, storage tanks, and process equipment all find their fit.
What is the difference between 904L and 316L stainless steel?
The alloy makeup is the primary variation. 904L includes higher quantities of nickel, molybdenum, and copper compared to 316L, offering superior corrosion resistance, especially in severe conditions like sulfuric acid. For aggressive chemical uses, it’s generally selected over 316L
Are Stainless Steel 904L plates and sheets weldable?
Indeed, 904L plates and sheets show outstanding weldability. Without pre-heating or post-weld heat treatment, they can be welded with common techniques including TIG, MIG, and SMAW.
What surface finishes are available for 904L plates and sheets?
Common finishes are mirror, 2B (cold rolled, annealed & pickled), BA (bright annealed), No. 1 (hot rolled, annealed & pickled). Applications and aesthetic criteria determine the surface finish choice.
Is 904L stainless steel magnetic?
Because of its austenitic structure, which makes Stainless Steel 904L non-magnetic in the annealed state, it is suited for uses needing low magnetic permeability.
