Stainless steel, a type of steel alloy, possesses a remarkable resistance to corrosion due to its chromium content of at least 10%. This composition forms a thin layer of metal oxide on the surface of stainless steel, effectively shielding it against destructive substances.
Among the widely recognized stainless steel grades, stainless steel 316 stands out. Comprised of approximately 16 to 18% chromium, 10 to 14% nickel, 2 to 3% molybdenum, and a small amount of carbon, SS 316 boasts improved resistance to corrosion compared to other A4 AISI 316 SS grades. Its characteristics can be improved further by adding other alloys.
AISI 316 is the second most commonly used stainless steel grade, following stainless steel 304, owing to its exceptional characteristics. It finds extensive application in environments susceptible to corrosion, such as chemical plants, refineries, and marine equipment.
When it comes to specific variants of SS 316 material, there are a few worth mentioning. Stainless steel 316L has a reduced carbon content, making it appropriate for situations where the metal may get sensitised. On the other hand, stainless steel 316H offers enhanced thermal stability and creep resistance due to its higher carbon content. Additionally, the stabilized variant, stainless steel 316Ti, exhibits superior resistance to intergranular corrosion.
The effectiveness of stainless steel in resisting oxidation from corrosive compounds is attributed to a process called passivation. By exposing stainless steel to air, it forms a protective layer of chromium oxides on its surface, rendering it passive or unreactive to corrosion.
To optimize the formation of the passive film, stainless steel undergoes a chemical treatment. This involves thorough cleaning through immersion in acidic passivation baths, typically containing nitric acid. By eliminating contaminants such as exogenous iron or free iron compounds, interference with the creation of the passive layer is prevented.
Following the acidic cleaning, the metal is neutralized in an aqueous sodium hydroxide bath. This step, known as descaling, removes additional oxide films that may have formed during high-temperature milling operations like hot-forming, welding, and heat treatment.
Chemical Composition of Stainless steel AISI 316
Table 1. Typical chemical composition for 316 stainless steel alloys
% |
316 |
316L |
316H |
316Ti |
C |
0.0-0.07 |
0.0-0.03 |
0.04-0.08 |
0.0- 0.08 |
Mn |
0.0-2.0 |
0-2.0 |
0.0-2.00 |
0.0-2.00 |
Si |
0.0-1.0 |
0.0-1.00 |
0.0-1.00 |
0.0- 1.00 |
P |
0.0-0.05 |
0.0-0.05 |
0-0.04 |
0.0-0.05 |
S |
0.0-0.02 |
0.0-0.02 |
0.0-0.02 |
0.0-0.03 |
Cr |
16.50-18.50 |
16.50-18.50 |
16.50-18.50 |
16.50- 18.50 |
Mo |
2.00-2.50 |
2.00-2.50 |
2.00-2.50 |
2.00- 2.50 |
Ni |
10.00-13.00 |
10.00-13.00 |
10.00-13.00 |
10.50- 14.00 |
Ti |
– |
– |
– |
0.40- 0.70 |
Fe |
balance |
balance |
balance |
balance |
Properties of Stainless Steel 316
Mechanical Properties of SS 316
Table 2. Typical mechanical properties for AISI 316 stainless steel alloys
Grade |
316 Bar and Section (up to 160 mm thick) |
316 Sheet (up to 8 mm thick) |
316 Plate (8 – 75 mm thick) |
316L Bar and Section (up to 160 mm) |
316L Sheet (up to 8 mm thick) |
316 L Plate (8 – 75 mm thick) |
316H Bar (up to 160 mm) |
316Ti Bar (up to 160 mm) |
Tensile Strength (MPa) |
500 – 700 |
530 – 680 |
520 – 670 |
500 – 700 |
530 – 680 |
520 – 670 |
490 – 690 |
500 – 700 |
Proof Stress (MPa) |
200 Min |
240 Min |
220 Min |
200 Min |
240 Min |
220 Min |
205 Min |
200 Min |
Elongation A50 mm |
40 Min % |
40 Min % |
45 Min % |
40 Min % |
40 Min % |
45 Min % |
35 % |
40 Min % |
Hardness Brinell |
215 Max HB |
– |
– |
215 Max HB |
– |
– |
– |
215 Max HB |
Physical Properties of AISI 316
Table 3. Typical physical properties for 316 stainless steel alloys
Property | Value |
Density | 8.00 g/cm3 |
Melting Point | 1400°C |
Modulus of Elasticity | 193 GPa |
Electrical Resistivity | 0.74 x 10-6 Ω.m |
Thermal Conductivity | 16.3 W/m.K |
Thermal Expansion | 15.9 x 10-6/K |
Alloy Designations
Stainless steel 316 also corresponds to the following standard designations and specifications:
Euronorm |
UNS |
BS |
En |
Grade |
1.4401 |
S31600 |
316S31 |
58H |
316 |
1.4404 |
S31603 |
316S11 |
– |
316L |
– |
S31609 |
316S51 |
– |
316H |
1.4571 |
– |
320S31 |
– |
316Ti |
Supplied Forms
Stainless steel 316 is typically supplied by Lakshya Steel in a range of finishes in the following forms:
-
SS 316 / 316Ti Flanges
-
SS 316 / 316Ti Rod/Bar
-
SS 316 / 316Ti Hex Bars
-
SS 316 / 316Ti Square Bars
-

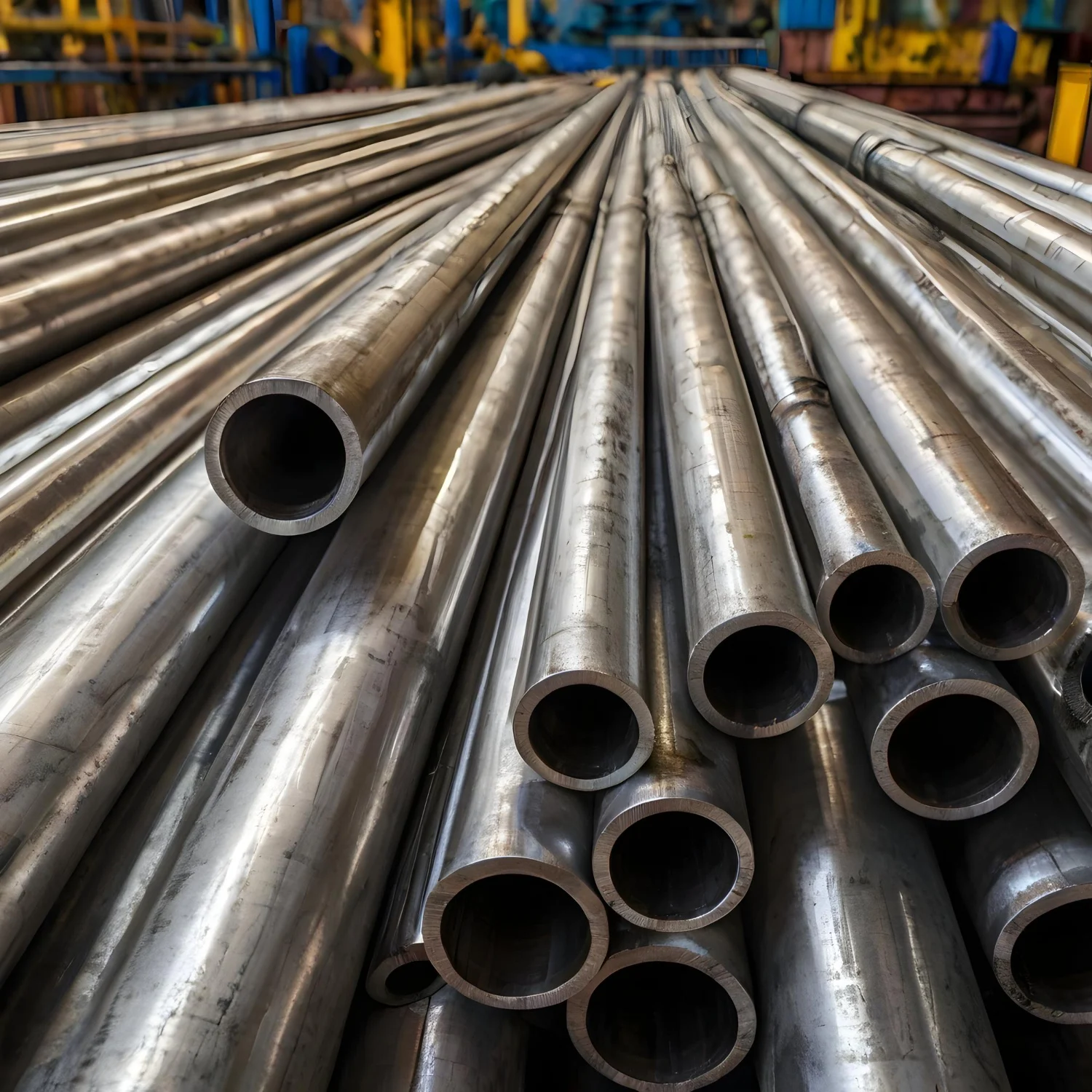

SS 316 / 316Ti Seamless Pipes
-
SS 316 / 316Ti Welded Pipes
-
SS 316 / 316Ti Plates
-
SS 316 / 316Ti Welded Tubes
-
SS 316 / 316Ti Seamless Tubes
-
SS 316 / 316Ti Flat Bars
-
SS 316 / 316Ti Angles
-
SS 316 / 316Ti Channels
-
SS 316 / 316Ti H Beams
-
SS 316 / 316Ti I Beam
-
SS 316 / 316Ti Pipe Fittings
-
SS 316 Perforated Sheets
-
SS 316 Single Slotted Pipe
-
SS 316 Double Slotted Pipe
-
SS 316/316Ti Components
