304 Stainless Steel Sheet Manufacturer & Supplier in India
Lakshay Steel manufactures and supplies Stainless Steel 304 Sheet with an austenitic stainless steel material that consists of 18% chromium and 8% nickel in its chemical composition. As a result, this is the most adaptable, and second to 316, the most widely used stainless steel grade in the world. Our 304 stainless sheets are known for their good strengths, excellent corrosion resistance, and ability to be used in wide-ranging applications in multiple industries. The 304 ss sheet also contains some manganese, carbon, silicon, sulfur, nitrogen, and phosphorus. This tough material typically has a minimum yield strength of 205MPa, and a minimum tensile strength of 515MPa.

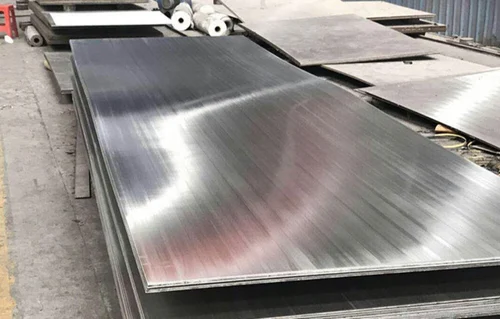

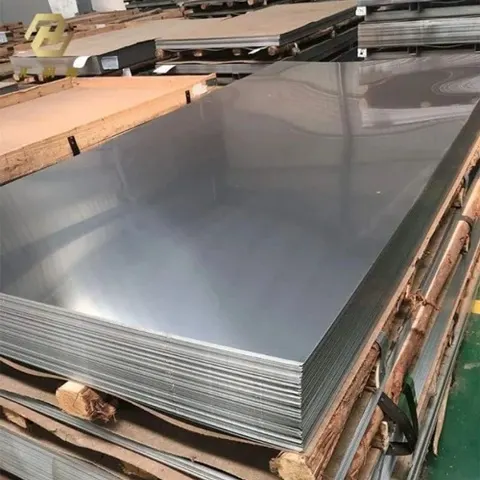

304 Stainless Steel Sheet

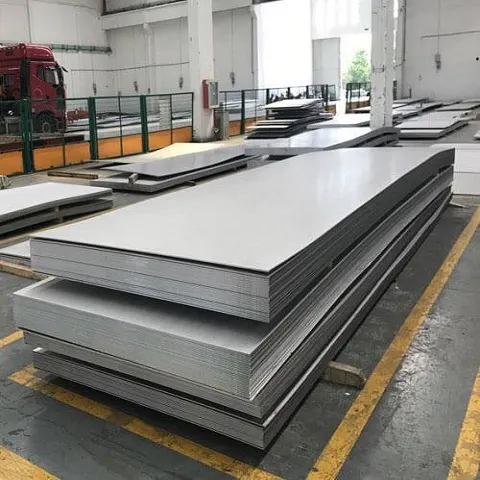

304 Stainless Steel Plate
304 Stainless Steel Strip
Specifications and Competitive Pricing of Stainless Steel 304 Sheets, Plates, and Coils
What is Stainless Steel 304 Sheet?
Standard Specification Of Stainless Steel 304 Sheets
| Specification | Details |
| Stainless Steel 304 Sheet Specification | ASTM A240 / ASME SA240 |
| Stainless Steel Sheet Manufacturing Process | Hot Rolled (HR) / Cold Rolled (CR) |
| Stainless Steel Sheet Thickness | 0.6 MM TO 80 MM THICKNESS |
| Stainless Steel Sheet Width | 1250 MM / 1500 MM / 2000 MM / 04 Feet / 05 Feet and Custom Cut Width as Per Requirement |
| Stainless Steel Sheet Length | 2400 MM / 2420 MM / 6000 MM / 08 Feet / 10 Feet / Coil Cut and Custom Cut Length as Per Requirement |
| Stainless Steel Sheet Surface Finish | 2B, 2D, BA, MATT, MATT PVC, No.1, No.4, No.5, SB, HR, No.1, Mirror, Hairline, Brush, Textured, Oil base wet Polished, Both sides Polished available. |
| Stainless Steel Sheet Coating | PVC coating Normal / Laser, Film: 100 micrometer, Color: black/white. |
| Stainless Steel Sheet Other Testing | NACE MR0175, Ultrasonic TEST, IGC TEST, Intergranular Corrosion Test as per ASTM A262 Practice E, Charpy Impact Test, Macro, Grain Size, Hardness, etc. |
| Stainless Steel Sheet Value Added Services | Gas Cutting / CNC Plasma Cutting / Profiling / Rolling / Bending / Sheet Metal Fabrication / Drill / Punch / Machining / Sand Blasting / Cold Blasting / Heat Treatment |
| Stainless Steel Sheet Packaging | Loose / Crate / Wooden Pallet / Wooden Box / Plastic Cloth Wraps |
| Stainless Steel Sheet Shipment & Transportation | By Road – Truck / Train Partial Load, Full Load, By Sea – Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air – Freighter Civil Passenger and Cargo Planes |
| Stainless Steel Sheet Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Bureau of Indian Standards BIS Approved ETC |
Stainless Steel 304 Sheets Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 304 | min. max. |
– 0.08 |
– 2.0 |
– 0.75 |
– 0.045 |
– 0.030 |
18.0 20.0 |
– |
8.0 10.5 |
– 0.10 |
304 Stainless Steel Sheet Mechanical Properties
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (μm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100°C (J/kg.K) | Electrical Resistivity (nΩ.m) | |||
| 0-100°C | 0-315°C | 0-538°C | at 500°C | ||||||
| 304 | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
304 Stainless Sheet Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
Polished and Plain 304 Stainless Steel Sheet from Lakshay Steel
Lakshay Steel maintains a huge stock of polished ss 304 sheets. Available finishes include Natural, Bright, Brushed, Dull Polished, Mirror, and Embossed Rigidised.
| Product | Finish | Thickness (mm) | Max Sheet Size (mm) |
| Grade 304 | Plain 2B | 0.9 | 2000 x 1000 |
| Grade 304 | Bright | 0.9 | 2000 x 1000 |
| Grade 304 | Brushed Finish | 0.9, 1.2 | 2000 x 1000, 2500 x 1250 |
| Grade 304 | Rimex Super Mirror | 0.8, 1.2 | 2400 x 1200, 2500 x 1250 |
| Grade 304 | Embossed | 0.8, 1.0 | 2500 x 1250 |
Perforated Stainless Steel Sheet 304
Lakshay Steel now offers circle cutting in Stainless Steel Grade 304 perforated sheets up to 1000mm diameter.
| Hole Diameter (mm) | Hole Centres (mm) | Open Area (%) | Finish | Thickness (mm) | Full Sheet Size (mm) |
| 0.75 | 1.5 | 23% | 2B | 0.6 | 2000 x 1000 |
| 1 | 2 | 23% | 2B | 1.0 | 2000 x 1000 |
Stainless Steel 304 Sheets Weight Chart
| Weight per | Size | Size | Weight per | ||||
| sheets (Kg) | (mm) | (mm) | sheets (Kg) | ||||
| 12.8 | 2500 x | 1250 x | 0.5 | 2000 x | 1000 x | 1.5 | 24.6 |
| 8.2 | 2000 x | 1000 x | 0.5 | 3000 x | 1500 x | 1.2 | 44.2 |
| 17.9 | 2500 x | 1250 x | 0.7 | 3000 x | 1500 x | 1.5 | 55.3 |
| 13.1 | 2000 x | 1000 x | 0.8 | 2000 x | 1000 x | 2.0 | 32.7 |
| 11.5 | 2000 x | 1000 x | 0.7 | 2500 x | 1250 x | 1.5 | 38.4 |
| 14.7 | 2000 x | 1000 x | 0.9 | 3000 x | 1500 x | 2.0 | 73.7 |
| 20.5 | 2500 x | 1250 x | 0.8 | 2500 x | 1250 x | 2.0 | 51.2 |
| 33.2 | 3000 x | 1500 x | 0.9 | 2500 x | 1250 x | 2.5 | 63.9 |
| 36.8 | 3000 x | 1500 x | 1.0 | 2500 x | 1250 x | 3.0 | 77.5 |
| 23.0 | 2500 x | 1250 x | 0.9 | 2000 x | 1000 x | 2.5 | 40.9 |
| 25.6 | 2500 x | 1250 x | 1.0 | 2000 x | 1000 x | 3.0 | 49.6 |
| 16.4 | 2000 x | 1000 x | 1.0 | 3000 x | 1500 x | 2.5 | 92.1 |
| 19.6 | 2000 x | 1000 x | 1.2 | 3000 x | 1500 x | 3.0 | 112.0 |
| 30.7 | 2500 x | 1250 x | 1.2 | ||||
304 Stainless Steel Sheet Thickness
| Size Range | Thickness | Surface Area per Unit weight | Thickness | Approx Weight per Sheet | ||
| inches | kg/m² | lbs/ft² | mm | kg | lbs | |
| 36 x 120 | 0.0178 | 3.690792 | 0.756 | 0.45212 | 10.27404 | 22.68 |
| 36 x 120 | 0.015 | 3.07566 | 0.630 | 0.381 | 8.5617 | 18.90 |
| 36 x 96 | 0.0178 | 3.690792 | 0.756 | 0.45212 | 8.22195 | 18.15 |
| 36 x 96 | 0.015 | 3.07566 | 0.630 | 0.381 | 6.84936 | 15.12 |
| 48 x 96 | 0.0178 | 3.690792 | 0.756 | 0.45212 | 10.95807 | 24.19 |
| 48 x 120 | 0.0178 | 3.690792 | 0.756 | 0.45212 | 13.69872 | 30.24 |
| 30 x 120 | 0.0235 | 4.921056 | 1.008 | 0.5969 | 11.4156 | 25.20 |
| 36 x 120 | 0.0235 | 4.921056 | 1.008 | 0.5969 | 13.69872 | 30.24 |
| 30 x 96 | 0.0235 | 4.921056 | 1.008 | 0.5969 | 9.13248 | 20.16 |
| 48 x 144 | 0.0291 | 6.15132 | 1.260 | 0.73914 | 27.40197 | 60.49 |
| 36 x 96 | 0.0235 | 4.921056 | 1.008 | 0.5969 | 10.95807 | 24.19 |
| 48 x 96 | 0.0235 | 4.921056 | 1.008 | 0.5969 | 14.61378 | 32.26 |
| 36 x 96 | 0.0355 | 7.381584 | 1.512 | 0.9017 | 16.43937 | 36.29 |
| 36 x 144 | 0.0235 | 4.921056 | 1.008 | 0.5969 | 16.43937 | 36.29 |
| 48 x 120 | 0.0235 | 4.921056 | 1.008 | 0.5969 | 18.26496 | 40.32 |
| 48 x 144 | 0.0235 | 4.921056 | 1.008 | 0.5969 | 21.92067 | 48.39 |
| 30 x 96 | 0.0291 | 6.15132 | 1.260 | 0.73914 | 11.4156 | 25.20 |
| 30 x 120 | 0.0291 | 6.15132 | 1.260 | 0.73914 | 14.2695 | 31.50 |
| 36 x 96 | 0.0291 | 6.15132 | 1.260 | 0.73914 | 13.69872 | 30.24 |
| 36 x 120 | 0.0291 | 6.15132 | 1.260 | 0.73914 | 17.1234 | 37.80 |
| 30 x 96 | 0.0355 | 7.381584 | 1.512 | 0.9017 | 13.69872 | 30.24 |
| 48 x 120 | 0.0291 | 6.15132 | 1.260 | 0.73914 | 22.83573 | 50.41 |
| 36 x 144 | 0.0291 | 6.15132 | 1.260 | 0.73914 | 20.55261 | 45.37 |
| 48 x 96 | 0.0291 | 6.15132 | 1.260 | 0.73914 | 18.26496 | 40.32 |
| 30 x 120 | 0.0355 | 7.381584 | 1.512 | 0.9017 | 17.1234 | 37.80 |
Types of Stainless Steel 304 Sheets
- Matt Finish Sheet
- Hairline Finish Sheet
- Glossy Finish Sheet
- Chequered Sheet
- Mirror Finish Sheet
- Scotch Brite Finish
- Coloured Sheets
- Designer Sheet
- Decorative Sheet
- BA Finish Sheet
- 2B Finish Sheet
- No.8 Finish Sheet
- No.4 Finish Sheet
- Gold Finish Sheet
- Gold Mirror Finish Sheet
- Gold Matt Finish Sheet
- Rose Gold Sheet
- Rose Gold Mirror Finish Sheet
- Rose Gold Matt Finish Sheet
304 Stainless Steel Sheet Price List
| Item Size & Description | Weight (lbs. / ft.) | Size (Sheet Dimensions) | Price Per Kg (in INR) |
| 24 GA. (.025) thick | 1.52 lb | 1 x 2 Ft. | ₹233.5/Kg |
| 20 GA. (.036) thick – #4 Brush Polish | 1.52 lb | 1 x 2 Ft. | ₹245/Kg |
| 18 GA. (.048) thick – PVC Matte Finish | 2.02 lb | 1 x 4 Ft. | ₹190/Kg |
| 16 GA. (.060) thick | 2.52 lb | 4 x 4 Ft. | ₹180/Kg |
| 14 GA. (.075) thick – 2B Mill Finish | 3.16 lb | 2 x 4 Ft. | ₹260/Kg |
| 11 GA. (.120) thick – 2B Finish | 5.05 lb | 2 x 8 Ft. | ₹185/Kg |
| 12 GA. (.109) thick | 5.05 lb | 2 x 8 Ft. | ₹240/Kg |
| 10 GA. (.135) thick – No. 4 Finish | 5.67 lb | 4 x 8 Ft. | ₹265/Kg |
Stainless Steel 304 Plate Dimensions Schedule
Metric Dimensions
| Plate Surface Finish | Description | Thickness (mm) | Max Width (mm) |
| 2B | Cold rolled, heat treated, pickled, skin passed sheet | 0.25–8.0 | 2032 |
| 2D | Cold rolled, heat treated, pickled sheet | 0.4–6.35 | 1524 |
| 2E | Cold rolled, heat treated, mechanically descaled plate | 0.4–8.0 | 2032 |
| 2R | Cold rolled, bright annealed plate | 0.25–3.5 | 1524 |
| 2H | Work hardened plate | 0.4–6.35 | 1524 |
| Polished, Brushed | Polished, brushed plate | 0.5–4.0 | 1524 |
Imperial Dimensions (ASTM A240 SS 304 Plate)
| Plate Surface Finish | Description | Gauge (in) | Max Width (in) |
| 2B | Cold rolled, heat treated, pickled, skin passed plate | 10–24 | 72 |
| 2D | Cold rolled, heat treated, pickled plate | 12–24 | 60 |
| BA | Mexinox only (example) | 18–28 | 48 |
| Polished | Polished sheet (not brushed) | 11–24 | 60 |
| Temper Rolled | Sheet (example) | 13–29 | 48 |
Large Stock Of Stainless Steel 304 Sheet at Lakshay Steel
As a premier Stainless Steel 304 Sheet supplier and manufacturer, Lakshay Steel holds an extensive inventory including:
|
|
SS 304 Sheets Applications
- Food Processing: Kitchen equipment and storage tanks.
- Chemical Processing: Tanks and pipes in corrosive environments.
- Marine: Shipbuilding and marine structures.
- Pharmaceuticals: Surgical tools and medical devices.
- Construction: Building facades and railings.
- Automotive: Exhaust systems and trim.
Contact Lakshay Steel for Stainless Steel 304 Sheets
For the best 304 stainless steel sheet price and to discuss your specific requirements for Stainless Steel 304 Sheets and other Stainless Steel 304 Products, or to explore our comprehensive range of Stainless Steel Products, contact Lakshay Steel today. We are a trusted supplier, exporter, and manufacturer dedicated to quality and customer satisfaction.
Taiwan, Mexico, Iran, Namibia, Afghanistan, Netherlands, Nepal, Ireland, Libya, Morocco, Iran, Switzerland, Finland, Slovakia, Pakistan, Australia, Serbia, Angola, China, Philippines, Czech Republic, Belgium, Estonia, Costa Rica, Croatia, Sweden, Venezuela, Colombia, India, Belarus, Jordan, Azerbaijan, Mongolia, Vietnam, Ghana, Iraq, Algeria, Puerto Rico, New Zealand, Singapore, Indonesia, Ukraine, Israel, Mexico, Hong Kong, Bhutan, Germany, Brazil, Plan, Yemen, Malasiya, USA, Cambodia, Laos, Uganda, Tanzania, Sudan, Democratic Republic of Congo, zambia, Ethiopia, Brunei, Madagascar, Niger, Mali, Bangladesh, Bolivia, United States, Ecuador, Lebanon, Italy, South Korea, Denmark, Norway, Sri Lanka, Zimbabwe, Japan, Yemen, Oman, Portugal, Lithuania, Canada, Macau, Bahrain, Austria, Bulgaria, Spain, Kenya, United Kingdom, United Arab Emirates, Kazakhstan, Egypt, Saudi Arabia, Gambia, Argentina, Romania, Tibet, France, Chile, Gabon, South Africa, Trinidad & Tobago,Tunisia, Turkey, Nigeria, Peru, Russia, Chile, Nigeria, Hungary, Qatar, Greece, Malaysia, Kuwait, Poland, Thailand, Poland.
New York City, Los Angeles, Chicago, Houston, Phoenix, Philadelphia, San Antonio, San Diego, Dallas, San Jose, Austin, Jacksonville, Fort Worth, Columbus, Charlotte, San Francisco, Indianapolis, Seattle, Denver, Washington, Boston, El Paso, Nashville, Detroit, Oklahoma City, Portland, Las Vegas, Memphis, Louisville, Baltimore, Milwaukee, Albuquerque, Tucson, Fresno, Mesa, Sacramento, Atlanta, Kansas City, Colorado Springs, Omaha, Raleigh, Miami, Long Beach, Virginia Beach, Oakland, Minneapolis, Tulsa, Tampa, Arlington, New Orleans, Wichita, Bakersfield, Cleveland, Aurora, Anaheim, Honolulu, Santa Ana, Riverside, Corpus Christi, Lexington, Henderson, Stockton, Saint Paul, Cincinnati, St. Louis, Pittsburgh, Greensboro, Lincoln, Anchorage, Plano, Orlando, Irvine, Newark, Durham, Chula Vista, Toledo, Fort Wayne, St. Petersburg, Laredo, Jersey City, Chandler, Madison, Lubbock, Scottsdale, Reno, Buffalo, Gilbert, Glendale, North Las Vegas, Winston-Salem, Chesapeake, Norfolk, Fremont, Garland, Irving, Hialeah, Richmond, Boise, Spokane, Baton Rouge, Tacoma, San Bernardino, Modesto, Fontana, Des Moines, Moreno Valley, Santa Clarita, Fayetteville, Birmingham, Oxnard, Rochester, Port St. Lucie, Grand Rapids, Huntsville, Salt Lake City, Frisco, Yonkers, Amarillo, Glendale, Huntington Beach, McKinney, Montgomery, Augusta, Aurora, Akron, Little Rock, Tempe, Columbus, Overland Park, Grand Prairie, Tallahassee, Cape Coral, Mobile, Knoxville, Shreveport, Worcester, Ontario, Vancouver, Sioux Falls, Chattanooga, Brownsville, Fort Lauderdale, Providence, Newport News, Rancho Cucamonga, Santa Rosa, Peoria, Oceanside, Elk Grove, Salem, Pembroke Pines, Eugene, Garden Grove, Cary.
FAQs
What is the difference between 321 stainless steel and 304 stainless steel sheets?
What are the properties of SS 304 sheets?
What are the dimensions and thicknesses available for SS 304 sheets?
Which is better 304 or 316 stainless steel?
What is a 304 stainless steel sheet?
What is the price of 304 stainless steel per kg?
While we try and keep our prices reasonable, you might see a general indicative price of something like ₹198/Kg for basic forms, but this can change. Contact Lakshay Steel for the most applicable and real-time prices that may be applicable to you.
What is stainless steel 304 used for?
