Inconel Round Bars are mostly used in a variety of industries such as aerospace, chemical, and many more. Inconel bars are basically designed to face high stress and high temperature environments. They are made of Nickel and chromium, which provide resistance to heat, rust, and chemical changes. Many companies used this Inconel Round Bar to make turbine blades, chemical equipment, and engine parts. When it comes to the best choice, then Lakshya International comes into the light; we provide high-quality Inconel Round Bars in different sizes suitable for both indoor and outdoor use.

Inconel Round Bar Suppliers and Manufacturers with Inconel Bar Stock

Lakshya International is a top supplier and manufacturer of Inconel Round Bars for Indian and international clients. They provide different types of Inconel Round Bars that include Inconel 600, Inconel 718, Inconel 625, Inconel 800, and Inconel 825.

They are made with a feature to provide exceptional strength to the components. When it’s heated, this material will develop a protective shield on the surface to prevent it from damage.

We are an ISO 9001:2015 Certified Company that also helps you to understand the type of Inconel Bars we provide. Our Round bars and rods come in different sizes and thicknesses to meet the precise requirements of our clients.

Inconel Material Round Bars, Inconel Alloy Rods, Inconel ASME SB 166 DIN 1.4876 / 1.4958 / 1.4876 / 1.4859 / 1.4876 Round Bars, Rods & Wires Supplier

Every industry uses different standards of inconel round bars. All the Inconel Round Bars, Alloy Rods, come in standards like ASME SB 166 and DIN 1.4876 / 1.4958 / 1.4859. All these different standards help the buyer to get a specific and accurate material for their use.

These different standards of Inconel bars are used to make different components, like pressure vessels and heat exchanger components. On the other hand, Inconel Flat bars are used to make industrial frames and heat-resistant panels. For chemical processing pipe and weld joints in turbine engines, Inconel TIG Rod / TIG Welding Rod is used. Different industries use Inconel Round Bars to make precision mechanical parts. Also, many aerospace industries use Inconel thread rods to mount their hardware components.

Inconel Round Bar Specification

Inconel Bars come in a variety of standards and dimensions, and to get the perfect material for your components. To know about the specification is important, so here is the detailed specification of Inconel Round Bars.

Grade Inconel 600, 601, 625, 690, 718, 800, 825
Hex Bar size 2-100mm A/F
Round bar size Diameter: 3-~800mm
Square bar size 4 to 100mm
Flat bar size Thickness: 2 -100mm
Width: 10 to 500mm
Rectangles Size 33 x 30mm to 295 x 1066mm
Angle bar size 3mm*20mm*20mm~12mm*100mm*100mm
Section 3.0 to 12.0mm thickness
Channel Bar 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness
Hollow Bar 32mm OD x 16mm ID to 250mm OD x 200mm ID)
Billet Size 1/2″ to 495mm Diameter
Finish Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black
Tolerance H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
Surface Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline, Polished
Condition Hardened & tempered, annealed
Technique Inconel Cold Drawn, Hot Rolled, Forged Round Bar,Cold Rolled, Rod
Processing Bar cutting to 650mm
Form Round, Welding Rod, T-Bar, Rod, Precision Ground Bar, Channel Bar, Square, Flat Bar, Blocks, Round Rod, Hollow, Rings, Rectangle, Hex (A/F), Triangle, Threaded, Profiles, Billet, Ingot, I/H Bar, Half Round Bar, Forging etc.

Types of Inconel Round Bar

Every industry uses different types of Inconel Bars according to its needs. To know about the different types of Inconel Bars, refer to the given chart below.

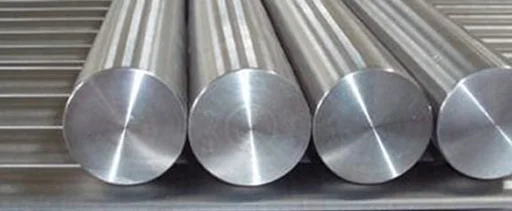

Inconel Alloy Round Bar

Inconel Alloy Round Bar

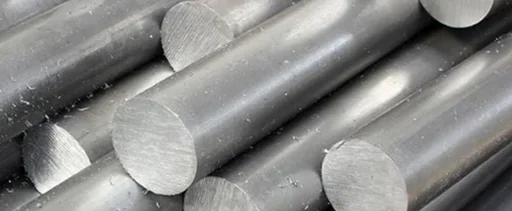

Astm B160 Inconel Rod

Astm B160 Inconel Rod

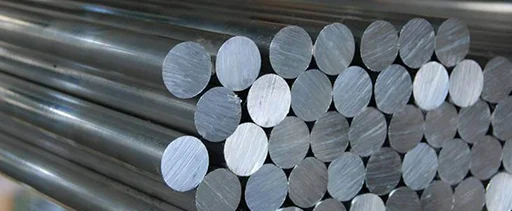

Inconel Bar Material

Inconel Bar Material

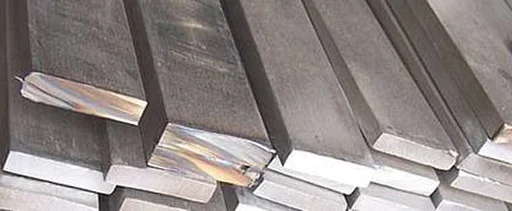

Inconel Flat Bar

Inconel Flat Bar

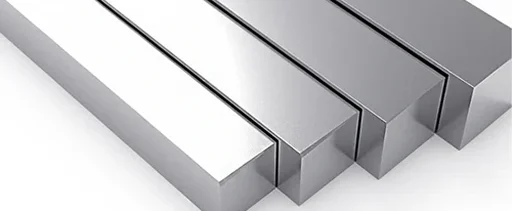

Inconel Square Bar

Inconel Square Bar

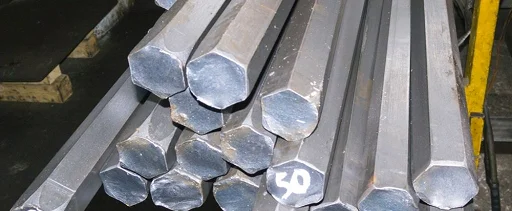

Inconel Hex Bar

Inconel Hex Bar

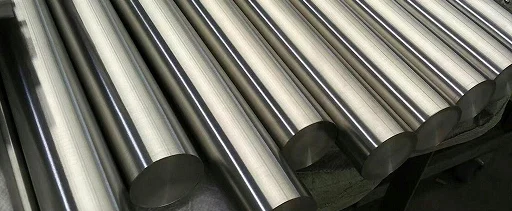

Inconel ASTM B160 Polished Bar

Inconel ASTM B160 Polished Bar

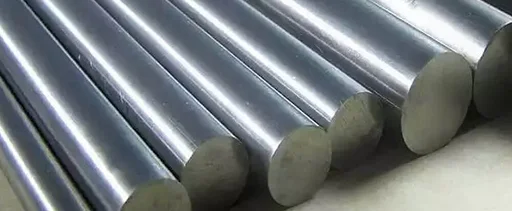

ASTM B160 Inconel Black Bar

ASTM B160 Inconel Black Bar

Equivalent Grades of Inconel Round Bar

Standards of the Inconel Round Bars depend on the country’s standards and requirements. The chart below shows the proper information about the different grades of this Inconel Round Bar.

STANDARD

UNS

WERKSTOFF NR.

BS

JIS

AFNOR

GOST

EN

Inconel 600

N06600

2.4816

NA 13

NCF 600

NC15FE11M

МНЖМц 28-2,5-1,5

NiCr15Fe

Inconel 601

N06601

2.4851

NA 49

NCF 601

NC23FeA

XH60BT

NiCr23Fe

Inconel 625

N06625

2.4856

NA 21

NCF 625

NC22DNB4M

ХН75МБТЮ

NiCr22Mo9Nb

Inconel 690

N06690

2.4642

Inconel 718

N07718

2.4668

–

NCF 718

–

–

–

Inconel 800

N08800

1.4876

NA 15

NCF 800

Z8NC32-21

ЭИ670

X10NiCrAlTi32-20

Inconel 825

N08825

2.4668

–

–

–

–

–

Heat Treatment of Inconel Hex Bar

Heat treatment determines the toughness of the material. So, to know about the temperature and heating process of a material is crucial for a buyer. The table below provides information about heat treatments, including solution annealing and precipitation hardening steps.

Solution Annealing Precipitation Hardening
After quenching in water between 925 and 980 °C
  • For eight hours, at 720°C
  • then gradually drop to 620 °C.
  • Allow it to age for eighteen hours.
  • then leave it open to the environment at ambient temperature.

Condition of ASTM B166 Inconel Rectangular Bar

ASTM B166 Inconel Rectangular Bars are high-strength, corrosion-resistant bars used in extreme conditions. The table below shows their condition and recommended heat treatment.

ANN Annealed
PH Precipitation hardened.
H&T Hardened and tempered.

Inconel Alloy Cold-Drawn Bar Tolerances

The table below lists the dimensional tolerances for Inconel Alloy Cold Drawn Bars, ensuring precise size and quality for industrial use.

Section/Shape Variation Permitted Diameter, Size or Width across flats
mm mm
Round
  • + 0 to – 00.070
  • + 0 to – 00.085
  • + 0 to – 00.100
  • + 0 to – 00.120
  • + 0 to – 00.140
  • ≥6 ≦ 18
  • > 18 ≦ 30
  • > 30 ≦ 50
  • > 50 ≦ 80
  • > 80 ≦ 100
Flat (width)
  • + 0 to – 00.110
  • + 0 to – 00.130
  • + 0 to – 00.160
  • + 0 to – 00.190
  • + 0 to – 00.220
  • + 0 to – 00.350
  • + 0 to – 1.00
  • + 1.00 to – 1.00
  • < 18
  • > 18 ≦ 30
  • > 30 ≦ 50
  • > 50 ≦ 80
  • > 80 ≦ 100
  • > 100 ≦ 130
  • > 130 ≦ 160
  • > 160 ≦ 320
Flat (thickness)
  • + 0 to – 00.110
  • + 0 to – 00.130
  • + 0 to – 00.250
  • + 0 to – 00.350
  • < 18
  • > 18 ≦ 30
  • > 30 ≦ 50
  • > 50 ≦ 80
Square and
hexagon
  • + 0 to – 00.090
  • + 0 to – 00.110
  • + 0 to – 00.130
  • + 0 to – 00.160
  • + 0 to – 00.250
  • ≥ 6 ≦ 18
  • > 18 ≦ 30
  • > 30 ≦ 50
  • > 50 ≦ 80
  • > 80 ≦ 105

Inconel Hex Bar Sizes

Many industries use Inconel Hex Bars to build nuts, pumps, exchangers, and marine hardware. To know about the different sizes of this material, read the chart given below.

Size in Inches Wt per Ft Wt per 12′
1″ 2.90 34.80
1-1/8″ 3.700 44.40
1-1/16″ 3.30 39.60
1-1/4″ 4.625 55.20
1-3/8″ 5.625 67.20
1-5/16″ 5.100 61.20
1-7/16″ 6.100 73.20
1-5/8″ 7.800 93.60
2-1/2″ 18.42 221.04
1-1/2″ 6.625 79.20
1/4″ 0.180 2.160
3/16″ 0.104 1.248
11/16″ 1.390 16.68
13/16″ 1.950 23.40
15/16″ 2.625 31.20
7/8″ 2.300 27.60
5/16″ 0.290 3.480
3/16″ 0.104 1.248
7/16″ 0.560 6.72
3/8″ 0.625 4.920
1-3/4″ 9.030 108.36
2″ 11.80 141.60
1/2″ 0.740 8.880
5/8″ 1.150 13.80
9/16″ 0.930 11.16
3/4″ 1.660 19.92
1-7/8″ 10.400 124.80
2-3/8″ 16.920 203.04
2-1/4″ 14.920 179.04
3″ 26.53 318.36

Inconel Round Bar Weight Chart

The weight of the material helps you save money on the delivery. So the chart below provides proper information on every weight standard.

Size 10mm 1/8″ 16mm 5/32″ 15mm 5mm 3/16″ 17mm 6mm 7/32″ 14mm 7mm 1/2″ 5/8″
kg/mtr 0.62 0.062 1.578 0.095 1.391 0.154 0.141 1.791 0.223 0.19 1.207 0.298 0.994 1.551
kg/ft 0.189 0.019 0.481 0.029 0.424 0.047 0.043 0.543 0.068 0.058 0.368 0.091 0.303 0.473
Size 36mm 22mm 2″ 7/8″ 48mm 1″ 25mm 2-1/8″ 27mm 26mm 45mm 30mm 1-5/8″ 50mm
kg/mtr 7.999 2.979 15.906 3.038 14.205 3.97 3.871 17.963 4.49 4.17 12.555 5.548 10.449 15.414
kg/ft 2.438 0.908 4.848 0.926 4.33 1.21 1.18 5.475 1.368 1.271 3.807 1.691 3.2 4.698
Size 8″ 3-1/4″   3-1/2″   4-1/4″ 4″   4-3/4″ 4-1/2″   5-1/2″
kg/mtr 254.55 41.996   48.772   72.249 63.34   90.249 80.34   121
kg/ft 77.586 12.8   14.85   21.908 19.306   27.366 24.4487   36.69
Size 8mm 11/16″ 18mm 5/16″ 13mm 3/8″ 12mm 9mm 9/16″ 11mm 3/4″ 1/4″
kg/mtr 0.398 1.88 2.001 0.387 1.043 0.557 0.889 0.498 1.256 0.748 2.237 0.249
kg/ft 0.12 0.573 0.61 0.118 0.318 0.17 0.271 0.152 0.383 0.228 0.682 0.076
Size 32mm 2-1/4″ 60mm 1-1/4″ 1-3/4″ 35mm 40mm 1-3/8″ 1-7/8″ 38mm 2-3/8″ 1-1/8″ 2-1/2″ 2-5/8″
kg/mtr 6.314 20.128 22.205 6.349 12.179 7.553 9.872 7.55 13.977 8.903 22.435 5.033 24.856 27.409
kg/ft 1.894 6.135 6.768 1.924 3.712 2.39 3.009 2.303 4.26 2.792 6.838 1.534 7.576 8.354
Size 6-1/2″     6″   7-1/2″   7″   10″   5″
kg/mtr 167.63     143.9   225   196   397.14   99.94
kg/ft 51.093     43.86   68.226   59.432   121.048   30.461

Inconel Alloy Round Bar Weight Calculation Formula

You can also check the weight of the Inconel Alloy Round Bar using a different formula, which is given below.

Method 1 Weight = OD2 x 0.00617 Where:
OD : Outer diameter (unit: mm)
Method 2 Weight = R2 / 40.5 Where:
OD: Outer diameter (unit: mm)
R : Radius (R = OD/2) (unit: mm)
Method 3 Weight = OD2/ 162 Where:
OD: Outer diameter (unit: mm)
Method 4 Weight = R2 x 0.02466 Where:
OD: Outer diameter (unit: mm)
R: Radius (R = OD/2) (unit: mm)
Method 5 Weight = 0.0007854 x OD x OD x 7.85 Where:
OD : Outer diameter (unit: mm)

Chemical Composition of Inconel Hex Bar

Inconel Hex Bar has a different pattern from other Bars, which also tells that its chemical composition is different. So, below is given the detailed composition information of this material.

Grade 625 601 600 718
Si .50 max 0.50 max 0.5 max 0.35 max
Ni 58.0 max 58.0 – 63.0 72.0 min 50 – 55
Mn .50 max 1.0 max 1.0 max 0.35 max
Fe 5.0 max Balance 6.0 – 10.0 –
C .10 max 0.10 max 0.15 max 0.08 max
Cr 20.0 – 23.0 21.0 – 25.0 14.0 – 17.0 17 – 21
Mo 8.0 – 10.0 8.0-10.0 – 2.8 – 3.3
Co 1.0 max – – 1.0 max
Cu – 1.0 max 0.5 max 0.3 max
S .015 max 0.015 max 0.015 max .015 max
Ti .40 max – – –
Nb 3.15 – 4.15 – – –
Al .40 max 1.0 – 1.7 – –

Mechanical Properties of Inconel Alloy Flat Bar

The mechanical properties tell about the yield and tensile strength of the material. So, below is the information about the mechanical properties of Inconel Alloy Flat Bar.

Grade 601 600
.2% Yield (psi) 30,000 45,000
Tensile (psi) 80,000 95,000
Elongation (%) 35 40

Inconel Round Bar Price List

The table below provides the price list of Inconel Round Bars, showing costs for different sizes and grades for easy reference.

Price list Price in USD Price in UAE Dirham
INCONEL 718 ROUND BAR Size : DIA X 3450-3850MM US $ 30.69 UAE 112.72
INCONEL 601 ROUND BAR Size: 32.00MM  US $ 611.99 UAE 2247.84
INCONEL ROUND BAR Size: DIA X 144 US $ 463.99 UAE 1704.24

Frequently Asked Questions About Inconel Round Bar

Who is the manufacturer of Inconel round bars in India?
Lakshya International is a trusted manufacturer, exporter, and supplier of high-quality Inconel round bars in India.
What is Inconel used for?
Inconel is used in high-temperature, high-pressure, and corrosive environments like aerospace, chemical, power, and marine applications.
What is the price of Inconel?

The price of Inconel varies by alloy grade, size, and quantity. So, to get the best prizes, contact Lakshya International for accurate quotes.

Is Inconel stronger than steel?
Yes, Inconel is a super alloy that is very strong cause of its higher strength and corrosion-resistant nature compared to any normal steel.
