Inconel Products
Inconel 718 Round Bar
Table of Content
- Types of Inconel 718 Round Bar
- Inconel 718 Round Bar Specification
- Equivalent Grades of Inconel 718 Round Bar
- HS Code of Inconel 718 Bar
- Chemical Composition Inconel Alloy 718 Bright Hex Round Bar
- Mechanical Properties of 718 Inconel Alloy Round Bars
- Inconel Alloy 718 Round Bar Sizes
- UNS N07718 Round Bar Size Chart
- 718 Inconel Round Bar Weights
- Thickness Chart of Alloy Inconel 718 Hex Bar
- Frequently Asked Questions About Inconel 718 Round Bar
Inconel 718 round bar is a nickel-chromium superalloy bar whose constituent is approximately 55 per cent nickel. It has approximately 17 percent chromium, approximately 4.9 percent niobium, at least 6.6 percent iron, and regulated amounts of aluminum, boron, carbon, cobalt, copper, manganese, phosphorus, lead, sulfur, and silicon. Inconel 718 bar profiles like Inconel 718 flat bars also integrate tantalum and titanium in the profile to improve stability and strength.
The alloy has a final tensile strength of approximately 1375 Mpa and a low yield strength of approximately 1100 Mpa. Typical product forms are Inconel 718 hex bar, square bar, Inconel 718 rod, 718 round bar (718 Inconel round bar), and flat bar, each of which is designed to be used in a particular application, and which has minor differences in mechanical response. Alloy 718 rod (alloy 718 bar) is a material that is characterized by its durability, ductility, and high corrosion resistance. The common ones are gas turbine, subsurface safety-tool valves, industrial fasteners, thrust reverser components, and aircraft engine parts. Lakshya Steel also offers bar stock and AMS 5662 bar including Inconel 718 threaded rod, 718 welding rod, and Inconel 718 tig rod to meet small and large quantities of requirements.
It is a prefered grade in terms of weldability and formability, high oxidation resistance and provides reliable performance up to high temperatures of about 1300F. UNS N07718 bright bar is also very effective in cryogenic conditions so that it can be used in the most demanding environments.
ASTM B637 Inconel UNS N07718 Bright Bar, Inconel Alloy 718 Forged Round Bar, 718 Inconel Alloy Hex Bars, Alloy 718 Forged Bar Stock, Inconel 718 Cold Finished Bars Suppliers in India, Inconel 718 Round Bar Suppliers, 718 Inconel Round Bar.
Lakshya Steel is a reliable manufacturer, supplier and exporter of high-performance Inconel 718 round bar, which is used in critical industries across the globe. Our 718 Inconel round bar is produced using nickel-chromium Alloy 718 (UNS N07718), which is highly corrosive and resistant to heat and therefore useful in aerospace, oil and gas, and chemical processing.
We make our Inconel 718 round bar stock to ASTM B637 / ASME SB637 and other aerospace standards AMS 5662 and AMS 5663. These come in sizes ranging between 5 mm to 500 mm in diameter, between 100 mm to 3000 mm and more in length. We are even providing various shapes such as round, square, hex, rectangular, wire and billet with a polish such as bright, polished and black. NACE MR0175 / ISO 15156 requirements of sour-service performance are available. Enquire about the current Inconel 718 bar stock, AMS 5662 bar and Inconel 718 round bar price on your project requirement.
Inconel Alloy 718 Forged Bar Inconel Alloy DIN 2.4668 Round Bars, Inconel 718 Forging Round Bar, Inconel 718 Flat Bar Exporter, 718 Inconel Square Bars Leading Manufacturers, Inconel 718 Round Bars Near Me.
Our Inconel 718 round bar is made of a nickel-chromium superalloy that provides high tensile and yield strength and good elongation and consistent service up to high temperatures. These bars have a density of approximately 8.2 g/cm 3, a melting temperature of approximately 1350 C (2460 F) and tensile strength of approximately 930 Mpa, which makes them designed to serve in a vigorous manner. Alloy 718 bar is also highly resistant to fatigue as well as retaining structural integrity during thermal cycling as the alloy provides a reliable option in demanding environments.
Inconel 718 round bar stock is also available in large quantities that enable us to dispatch the products to our customers within India and other parts of the world. We also ship regularly to hubs like Mumbai, London, Singapore, Houston and Sydney in five continents. We are a reliable supplier of Inconel 718 round bars and as such, we maintain large stocks of sizes and finishes in stock and we can turn around fast with delivery options that suit your project requirements. Others are 718 round bar, 718 Inconel round bar, Inconel 718 rod in bright, polished, and black finishes. Due to the fact that the price of Inconel 718 round bars is determined by size, finish and grade, and market conditions, the rates may change. In India, the average cost is approximately 3000-5000/kg with simple specifications being the lower range and larger or specialty diameters being the higher range.
Give your needed dimensions, quantity, and finish and our team will provide you with competitive rates and delivery information on Inconel 718 bar, Inconel 718 bar stock, AMS 5662 bar or Inconel 718 threaded rod.
Types of Inconel 718 Round Bar
Explore the common forms of Inconel 718 round bar used across industries.
Inconel 718 Hex Bar
Alloy 718 Flat Bar
Nicrofer 5219 Square Bar
DIN 2.4668 Rectangle Bar
Nickel 718 Bright Bar
Inconel 2.4668 Polished Bar
Werkstoff 2.4668 Cold Drawn Bar

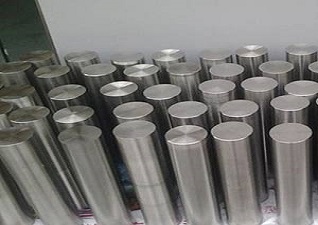

UNS N07718 Forged Bar
Inconel 718 Round Bar Specification
| Specification | Details |
| Specification | ASTM B637 / ASME SB637, AMS 5662, AMS 5663, AMS 5664 |
| Dimensions | ASTM, ASME and API |
| Size | 5 mm to 500 mm |
| Diameter | 0.1 mm to 100 mm |
| Length | 100 mm to 3000 mm & Above |
| Finish | Bright, Polish & Black |
| Grade | Inconel 718 – UNS N07718 |
| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging, etc. |
Equivalent Grades of Inconel 718 Round Bar
| STANDARD | UNS | WERKSTOFF NR. |
| Inconel 718 | N07718 | 2.4668 |
HS Code of Inconel 718 Bar
Find the correct customs classification for nickel alloy 718 round bar. We provide the HS code reference used for international trade to streamline export paperwork, duty calculations, and logistics planning.
| Description | HS Code |
| Inconel 718 Bar | 75051220 |
Chemical Composition Inconel Alloy 718 Bright Hex Round Bar
| Grade | Ni | Cr | Cu | C | Mn | S | Mo | Si | Co |
| Inconel 718 | 50 – 55 | 17 – 21 | 0.3 max | 0.08 max | 0.35 max | 0.015 max | 2.8 – 3.3 | 0.35 max | 1.0 max |
Mechanical Properties of 718 Inconel Alloy Round Bars
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 135,000 , MPa – 930 | Psi – 70,000 , MPa – 482 | 45 % |
Inconel Alloy 718 Round Bar Sizes
| Material | Diameter | Length | Make |
| Inconel 718 Round Bar, Inconel 718 Flat Bar, Inconel 718 Hex Bar, Inconel 718 Square Bar | 0.5 mm to 500 mm | 50 mm to 6000 mm Long | Indian, European and Japanese origin |
UNS N07718 Round Bar Size Chart
| ASTM/ Canadian | Metric | Japanese | US Bar | ||||
| Diameter (mm2) | Bar Size | Diameter(mm) | Bar Size | Diam. (mm) | Bar Size | Diameter (Inch) | Bar Size |
| 300 | 20M | 6 | 6 | 13 | 13 | 0.500 | #4 |
| 200 | 15M | 5.5 | 5.5 | 10 | 10 | 0.375 | #3 |
| 700 | 30M | 8 | 8 | 19 | 19 | 0.750 | #6 |
| 1000 | 35M | 9 | 9 | 22 | 22 | 0.875 | #7 |
| 500 | 25M | 7 | 7 | 16 | 16 | 0.625 | #5 |
| 2500 | 55M | 11 | 11 | 29 | 29 | 1.125 | #9 |
| 100 | 10M | 5 | 5 | 6 | 6 | 0.250 | #2 |
| 1500 | 45M | 10 | 10 | 25 | 25 | 1.000 | #8 |
| – | – | 14 | 14 | 35 | 35 | 1.375 | #11 |
| – | – | 32 | 32 | – | – | – | – |
| – | – | 12 | 12 | 32 | 32 | 1.250 | #10 |
| – | – | 20 | 20 | 44 | 44 | 1.750 | #14 |
| – | – | 22 | 22 | 48 | 48 | 1.875 | #15 |
| – | – | 16 | 16 | 38 | 38 | 1.500 | #12 |
| – | – | 18 | 18 | 41 | 41 | 1.625 | #13 |
| – | – | 28 | 28 | 57 | 57 | 2.250 | #18 |
718 Inconel Round Bar Weights
| Round Bar | ||||||||
| Size | Kgs / Mtr | Kgs / Foot | Size | Kgs / Mtr | Kgs / Foot | Size | Kgs / Mtr | Kgs / Foot |
| 3mm | 0.0055 | 0.0017 | 20mm | 2.0470 | 0.0753 | 3″ | 35.0762 | 10.0900 |
|---|---|---|---|---|---|---|---|---|
| 1/8″ | 0.0062 | 0.0019 | 22mm | 2.0979 | 0.0908 | 3 to 1/4″ | 41.0996 | 12.0800 |
| 5/32″ | 0.0095 | 0.0029 | 7/8″ | 3.0038 | 0.0926 | 3 to 1/2″ | 48.0772 | 14.0850 |
| 4mm | 0.0098 | 0.0030 | 24mm | 3.0543 | 1.0080 | 3 to 3/4″ | 55.0780 | 17.0001 |
| 3/16″ | 0.0141 | 0.0043 | 25mm | 3.0871 | 1.0180 | 4″ | 63.0340 | 19.0306 |
| 5mm | 0.0154 | 0.0047 | 1″ | 3.0970 | 1.0210 | 4 to 1/4″ | 72.0249 | 21.0908 |
| 7/32″ | 0.0190 | 0.0058 | 26mm | 4.0170 | 1.0271 | 4 to 1/2″ | 80.0340 | 24.04487 |
| 6mm | 0.0223 | 0.0068 | 27mm | 4.0490 | 1.0368 | 4 to 3/4″ | 90.0249 | 27.0366 |
| 1/4″ | 0.0249 | 0.0076 | 1 to 1/8″ | 5.0033 | 1.0534 | 5″ | 99.0940 | 30.0461 |
| 7mm | 0.0298 | 0.0091 | 30mm | 5.0548 | 1.0691 | 5 to 1/2″ | 121.0000 | 36.0690 |
| 5/16″ | 0.0387 | 0.0118 | 1 to 1/4″ | 6.0349 | 1.0924 | 6″ | 143.0900 | 43.0860 |
| 8mm | 0.0398 | 0.0120 | 32mm | 6.0314 | 1.0894 | 6 to 1/2″ | 167.0630 | 51.0093 |
| 9mm | 0.0498 | 0.0152 | 1 to 3/8″ | 7.0550 | 2.0303 | 7″ | 196.0000 | 59.0432 |
| 3/8″ | 0.0557 | 0.0170 | 35mm | 7.0553 | 2.0390 | 7 to 1/2″ | 225.0000 | 68.0226 |
| 10mm | 0.0620 | 0.0189 | 36mm | 7.0999 | 2.0438 | 8″ | 254.055 | 77.0586 |
| 11mm | 0.0748 | 0.0228 | 38mm | 8.0903 | 2.0792 | 10″ | 397.0140 | 121.0048 |
| 7/16″ | 0.0761 | 0.0232 | 1 to 1/2″ | 8.0951 | 2.0715 | |||
| 12mm | 0.0889 | 0.0271 | 40mm | 9.0872 | 3.0009 | |||
|
1/2″
|
0.0994 | 0.0303 |
1 to 5/8″
|
10.0449 | 3.0200 | |||
|
13mm
|
1.0043 | 0.0318 |
1 to 3/4″
|
12.0179 | 3.0712 | |||
|
14mm
|
1.0207 | 0.0368 |
45mm
|
12.0555 | 3.0807 | |||
|
9/16″
|
1.0256 | 0.0383 |
1 to 7/8″
|
13.0977 | 4.0260 | |||
|
15mm
|
1.0391 | 0.0424 |
48mm
|
14.0205 | 4.0330 | |||
|
5/8″
|
1.0551 | 0.0473 |
50mm
|
15.0414 | 4.0698 | |||
|
16mm
|
1.0578 | 0.0481 |
2″
|
15.0906 | 4.0848 | |||
|
17mm
|
1.0791 | 0.0543 |
2 to 1/8″
|
17.0963 | 5.0475 | |||
|
11/16″
|
1.0880 | 0.0573 |
2 to 1/4″
|
20.0128 | 6.0135 | |||
|
18mm
|
2.0001 | 0.0610 |
60mm
|
22.0205 | 6.0768 | |||
|
3/4″
|
2.0237 | 0.0682 |
2 to 3/8″
|
22.0435 | 6.0838 | |||
|
2 to 1/2″
|
24.0856 | 7.0576 | ||||||
|
2 to 5/8″
|
27.0409 | 8.0354 | ||||||
|
2 to 3/4″
|
30.0083 | 9.0169 | ||||||
Thickness Chart of Alloy Inconel 718 Hex Bar
Find across-flats and thickness details for Inconel 718 hex bar. These dimensions help with wrench clearance, tooling selection, and fastener or fitting compatibility.
| Thickness (inch) | Weight ( Kgs / Mtr) |
| 1/2″ | 0.0062 |
| 1/8″ | 0.0062 |
| 4mm | 0.0098 |
| 5mm | 0.0154 |
| 10mm | 0.0620 |
| 11mm | 0.0748 |
| 12mm | 0.0889 |
| 13mm | 1.0043 |
| 6mm | 0.0223 |
| 7mm | 0.0298 |
| 8mm | 0.0398 |
| 9mm | 0.0498 |
| 14mm | 1.0207 |
| 15mm | 1.0391 |
410 Stainless Steel Fasteners Types
Hardness of UNS N07718 Round Bar
| Hardness | 0.2% Proof Stress | Elongation | Tensile Strength | Reduction of area |
| HRC | MPA | % | MPA | % |
| Min | Min | Min | Min | Min |
| 40 | 827 | 17 | 1034 | 25 |
410 Stainless Steel Fasteners Types
Nickel Alloy 718 Round Bar Tolerances
| Alloy(s) | Condition | (over(+)/under(-)) Diameter Tol. | in. Spec. Diameter |
| 718 | Hot Rolled | + 0.125″, – 0.063″ | Over 4 |
| 718 | Hot Rolled | + 0.031″, – 0.016″ | Over 1 to 2, incl. |
| 718 | Hot Rolled | +/- 0.016″ | Up to 1, incl. |
| 718 | Hot Rolled | + 0.047″, – 0.031″ | Over 2 to 4, incl. |
410 Stainless Steel Fasteners Types
Inconel 718 Threaded Rod Heat Treatment
| Type | Process |
| Precipitation Hardening | 1325° F for 8 hours, furnace cool to 1150° F |
| Solution Treatment | 1700°- 1850° then air cool |
410 Stainless Steel Fasteners Types
ISO Tolerance of UNS N07718 Bar
| Type | SIZES (Inches) | SIZES (mm) | ISO Tolerance |
| Peeled and Polished | 1.50″ to 6.00″ | 40.00 to 150.00 | h11-DIN 1013 |
| Cold Drawn and Ground | 5/6″ to 2.50″ | 10.00 to 75.00 | h9-h8-h11-h10 |
| Cold Drawn and Polish | 1/8″ to 3.00″ | 3.00 to 75.00 | h9-h8-h11-h10 |
| Peeled and Ground | 3/4″ to 2.00″ | 20.00 to 50.00 | h10-h9-h11 |
410 Stainless Steel Fasteners Types
Inconel 718 Round Bar Price & Stock List
| Inconel 718 Bar Price in India | Quantity | Price in USD $ |
| 30.0 Dia x 100mm long | 1 | $118.02 |
| 30.0 Dia x 250mm long | 1 | $217.78 |
| 30.0 Dia x 500mm long | 1 | $386.38 |
| 30.0 Dia x 1000mm long | 1 | $519.85 |
410 Stainless Steel Fasteners Types
Frequently Asked Questions About Inconel 718 Round Bar
What is 718 Inconel?
Inconel 718 is a high-strength nickel-chromium superalloy developed in the 1950s. It contains 50-55% nickel, 17-21% chromium, iron, niobium, molybdenum, titanium, and aluminum for exceptional strength and corrosion resistance at high temperatures.
Are nickel 718 and Inconel 718 the same?
What precautions should be taken while machining Inconel 718?
Is 718 Inconel stronger than titanium?
What are the recommended cutting speeds and feeds for Inconel 718?
