Hastelloy C276 Round Bar

Home » Hastelloy C276 Round Bar

Table of Content

Get In Touch

Hastelloy C276 Round Bar is a high-performance nickel alloy that is mainly made with the use of 15% molybdenum and 14.5% chromium in the composition. This mixture makes it very resistant to corrosion even in oxidizing and reducing conditions, and therefore it’s suitable for several industries for making different components. Although it’s a mixture of two main metals, but other than that it also has carbon, manganese, silicon, cobalt, phosphorus, iron, sulfur, tungsten, and vanadium, which increase the mechanical properties and durability of the alloy. The Alloy C276 Rod has a very high strength with a maximum tensile strength of 790 MPa and a minimum yield strength of 355 MPa, which makes this material a perfect choice to make high-pressure applications. Its high melting point of 1370 °C makes it strong enough to survive in high-temperature environments, which is why it is used in the chemical processing, marine, power, and pollution control industries.

Hastelloy C276 Round Bar Suppliers, ASTM B574 Hastelloy C276 Bright bar, Hastelloy UNS N10276 Square Bar Manufacturer In India.

Lakshya International is a major supplier and exporter of high-quality Hastelloy C276 Round Bars with customers in India and globally. We are a trusted brand that provides the highest quality and precise materials to many industries, including chemical processing, petrochemicals, power generation, pharmaceuticals, and offshore uses. Our Hastelloy C276 Round Bars come in many different sizes, finishes, and dimensions, like bright, rough-turned, matt, and BA finishes, which also provide flexibility to this material, so industries can make components according to their needs. We are a reliable exporter of this material, ensuring high-quality standards like ASTM, EN, DIN, JIS, BS, ASME, and AISI. Lakshya International has built a trust for providing quality products at affordable prices by offering quick delivery, personal solutions, and total customer satisfaction. With smart, broad inventory and committed customer service, we are the best organization to provide high-quality Hastelloy C276 Round Bars to meet the demands of their critical industrial needs.

Types of Hastelloy C276 Round Bar

The different types of Hastelloy C276 Round Bar are recognized by their manufacturing, shape, grade, finish, and size. But the common sizes that are most used are given below.

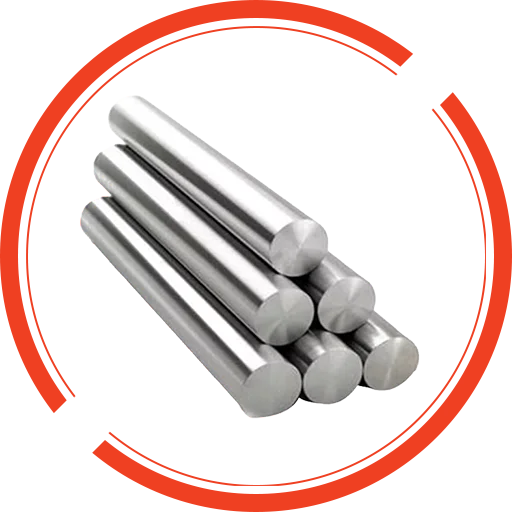

uns n10276 rod

Hastelloy Rod

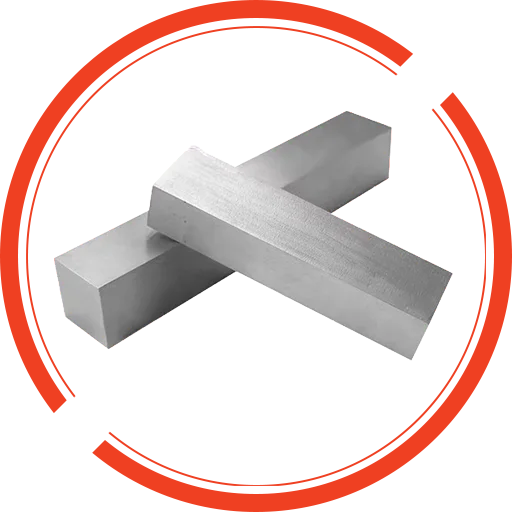

Hastelloy c276 square bar

Hastelloy Metal Hex Bar

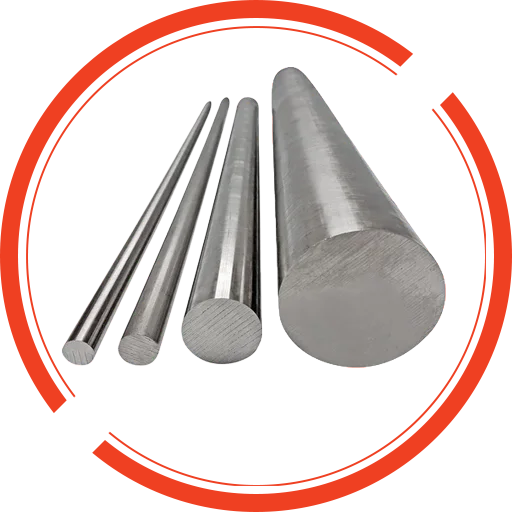

Hastelloy c276 hot rolled bar

Hastelloy C276 hot rolled bar

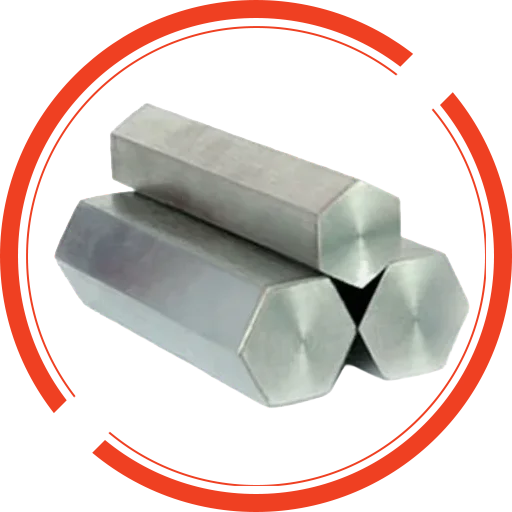

Hastelloy c276 hexbar

Hastelloy C276 hexbar

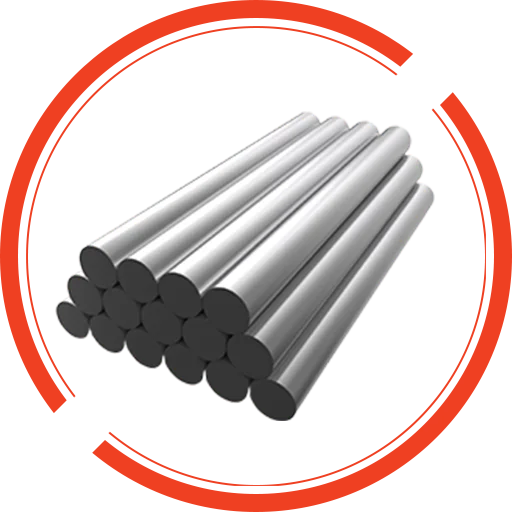

Hastelloy c276 forged bar

Hastelloy C276 forged bar

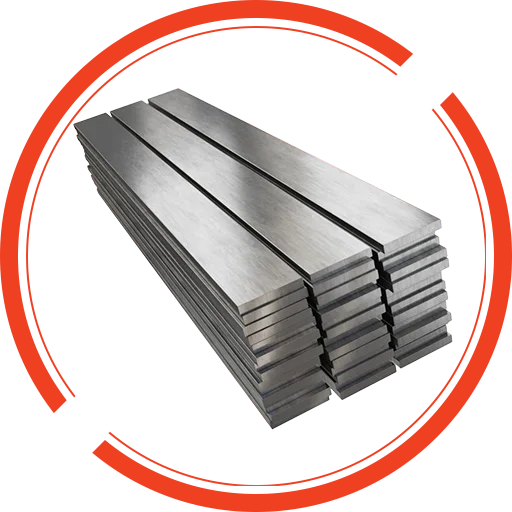

Hastelloy c276 flat bar

Hastelloy Metal Alloy Flat Bar

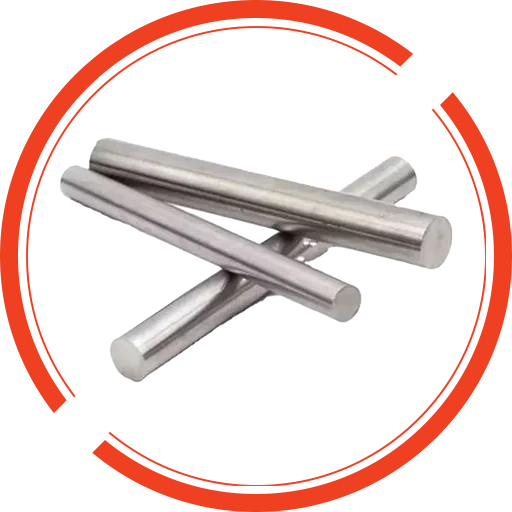

astm b574 rod

Hastelloy Rod

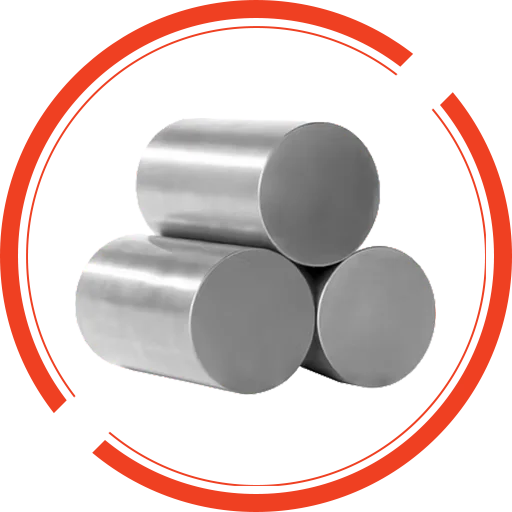

din 2.4819 bar

din 2.4819 bar

Equivalent of DIN 2.4819 Bar

The Hastelloy C276 alloy has some other standards, and all of the standards that are highly used by customers or manufacturers are given below

STANDARD UNS WERKSTOFF NR. AFNOR EN JIS OR GOST
Hastelloy C276 N10276 2.4819 – NiMo16Cr15W NW 0276 ЭП760 ХН65МВУ

Chemical Composition of UNS N10276 Square Bar

The chemical composition of any material ensures the strength of the material, and below is a detailed informative table on different metals in this material.

ELEMENT HASTELLOY C 276
NI 50.99 min*
CR 14.50 – 16.50
MO 15.00 – 17.00
FE 4.00 – 7.00
W 3.00 – 4.50
C 0.010 max
SI 0.08 max
CO 2.50 max
MN 1.00 max
V 0.35 max
P 0.04 max
S 0.03 max

Physical Properties of UNS N10276 Rod

The physical properties of any material help to create different shapes of components according to the needs. Below are given the physical properties of the UNS N10276 Rod

DENSITY (G/CM 3) 8.89
DENSITY (LB/IN 3) 0.321
MELTING POINT (°C) 1325 – 1370
MELTING POINT (°F) 2415 – 2500

Hastelloy C276 Round Bar Tensile Strength

The tensile strength ensures that the components work perfectly in harsh conditions. To know about the tensile strength of Hastelloy C276 Round Bar, refer to the following table.

Elongation Density Tensile Strength Melting Point Yield Strength (0.2%Offset)
40% 8.89 g/cm33 Psi – 1,15,000 , MPa – 790 1370 °C (2500 °F) Psi – 52,000 , MPa – 355

ASTM B574 Hastelloy C276 Bright Bar Size Chart

The Hastelloy C276 Bar comes in different finishes, like bright, polished, forged, and hot-rolled, and below is the information about the different sizes of bright bar.

Type SIZES (mm) SIZES (Inches) ISO Tolerance
Cold Drawn and Ground 10.00 – 75.00 5/6″ – 2.50″ h8-h9-h10-h11
Peeled and Polished 40.00 – 150.00 1.50″ – 6.00″ h11, h11-DIN 1013
Peeled and Ground 20.00 – 50.00 3/4″ – 2.00″ h9-h10-h11
Cold Drawn and Polish 3.00 – 75.00 1/8″ – 3.00″ h8-h9-h10-h11

Hot Rolled DIN 2.4819 Round Bar Weight Chart

Now comes the hot-rolled DIN 2.4819 Round Bar and its finishing is different from others and that’s why it has different sizes, and all the data is given below.

Round Bar
Size Kgs / Foot Kgs / Mtr Size Kgs / Foot Kgs / Mtr Size Kgs / Foot Kgs / Mtr
3 0.017 0.055 20 0.753 2.470 3″ 10.900 35.762
1/8″ 0.019 0.062 22 0.908 2.979 3-1/4″ 12.800 41.996
5/32″ 0.029 0.095 7/8″ 0.926 3.038 3-1/2″ 14.850 48.772
4 0.030 0.098 24 1.080 3.543 3-3/4″ 17.001 55.780
3/16″ 0.043 0.141 25 1.180 3.871 4″ 19.306 63.340
5 0.047 0.154 1″ 1.210 3.970 4-1/4″ 21.908 72.249
7/32″ 0.058 0.190 26 1.271 4.170 4-1/2″ 24.4487 80.340
6 0.068 0.223 27 1.368 4.490 4-3/4″ 27.366 90.249
1/4″ 0.076 0.249 1-1/8″ 1.534 5.033 5″ 30.461 99.940
7 0.091 0.298 30 1.691 5.548 5-1/2″ 36.690 121.000
5/16″ 0.118 0.387 1-1/4″ 1.924 6.349 6″ 43.860 143.900
8 0.120 0.398 32 1.894 6.314 6-1/2″ 51.093 167.630
9 0.152 0.498 1-3/8″ 2.303 7.550 7″ 59.432 196.000
3/8″ 0.170 0.557 35 2.390 7.553 7-1/2″ 68.226 225.000
10 0.189 0.620 36 2.438 7.999 8″ 77.586 254.55
11 0.228 0.748 38 2.792 8.903 10″ 121.048 397.140
7/16″ 0.232 0.761 1-1/2″ 2.715 8.951
12 0.271 0.889 40 3.009 9.872
1/2″ 0.303 0.994 1-5/8″ 3.200 10.449
13 0.318 1.043 1-3/4″ 3.712 12.179
14 0.368 1.207 45 3.807 12.555
9/16″ 0.383 1.256 1-7/8″ 4.260 13.977
15 0.424 1.391 48 4.330 14.205
5/8″ 0.473 1.551 50 4.698 15.414
16 0.481 1.578 2″ 4.848 15.906
17 0.543 1.791 2-1/8″ 5.475 17.963
11/16″ 0.573 1.880 2-1/4″ 6.135 20.128
18 0.610 2.001 60 6.768 22.205
3/4″ 0.682 2.237 2-3/8″ 6.838 22.435
      2-1/2″ 7.576 24.856
      2-5/8″ 8.354 27.409
      2-3/4″ 9.169 30.083

Hex Bar Standard Sizes of Hastelloy C276

The Hex Bars are made with 6 sides, and their weight and size are different from other types of bars. So here is the size and weight per foot of this material.

hex bar Wt per Ft
hex bar Size in Inches
hex bar Wt per 12′
0.560
7/16″
6.72
0.180
1/4″
2.160
0.290
5/16″
3.480
0.104
3/16″
1.248
0.109
3/8″
4.920
0.930
9/16″
11.16
0.740
1/2″
8.880
1.150
5/8″
13.80
1.660
3/4″
19.92
1.390
11/16″
16.68
2.600
15/16″
31.20
2.90
1″
34.80
1.950
13/16″
23.40
2.300
7/8″
27.60
3.30
1-1/16″
39.60
4.600
1-1/4″
55.20
26.53
3″
318.36
3.700
1-1/8″
44.40
5.100
1-5/16″
61.20
6.100
1-7/16″
73.20
6.600
1-1/2″
79.20
5.600
1-3/8″
67.20
7.800
1-5/8″
93.60
10.400
1-7/8″
124.80
9.030
1-3/4″
108.36
11.80
2″
141.60
16.920
2-3/8″
203.04
14.920
2-1/4″
179.04
18.42
2-1/2″
221.04

UNS N10276 Hastelloy C276 Round Bar Size Chart

Mostly, the Round bar is used by many industries in large quantities. It’s important for a buyer to know about the dimensions of this material. So the size and weight ratio of this Hastelloy C276 Round bar is given below.

Size of Alloy C276 round bar
Metric US Bar ASTM/ Canadian Japanese
Diameter(mm) Bar Size Diameter (Inch) Bar Size Diameter (mm2) Bar Size Diam. (mm) Bar Size
6 6 0.500 #4 300 20M 13 13
5.5 5.5 0.375 #3 200 15M 10 10
8 8 0.750 #6 700 30M 19 19
9 9 0.875 #7 1000 35M 22 22
7 7 0.625 #5 500 25M 16 16
11 11 1.125 #9 2500 55M 29 29
5 5 0.250 #2 100 10M 6 6
10 10 1.000 #8 1500 45M 25 25
14 14 1.375 #11     35 35
32 32
12 12 1.250 #10     32 32
20 20 1.750 #14     44 44
22 22 1.875 #15     48 48
16 16 1.500 #12     38 38
18 18 1.625 #13     41 41
28 28 2.250 #18     57 57
50 50
25 25 2.000 #16     51 51
40 40
36 36
44 44

Tolerance List of Hastelloy Alloy C276 Forged Bars

Forged bars are made with different temperatures and heating techniques. The table below gives the tolerance of size, diameter, and widget across different sizes of Hastelloy Alloy C276 forged bars.

Tolerances for Cold Drawn Hastelloy C276 Round Bar
Shape / Section Size, diameter or width across flats Permitted variation
mm mm
Round ≥6 ≦ 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80
> 80 ≦ 100		 + 0 to – 0.070
+ 0 to – 0.085
+ 0 to – 0.100
+ 0 to – 0.120
+ 0 to – 0.140
Flat (thickness) < 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80		 + 0 to – 0.110
+ 0 to – 0.130
+ 0 to – 0.250
+ 0 to – 0.350
Flat (width) < 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80
> 80 ≦ 100
> 100 ≦ 130
> 130 ≦ 160
> 160 ≦ 320		 + 0 to – 0.110
+ 0 to – 0.130
+ 0 to – 0.160
+ 0 to – 0.190
+ 0 to – 0.220
+ 0 to – 0.350
+ 0 to – 1.00
+ 1.00 to – 1.00
Square and
hexagon		 ≥ 6 ≦ 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80
> 80 ≦ 105		 + 0 to – 0.090
+ 0 to – 0.110
+ 0 to – 0.130
+ 0 to – 0.160
+ 0 to – 0.250

Hastelloy C76 Round Bar Price List

The cost of these bars varies from country to country. The table below shows the Hastelloy C276 round bar price in India.

Hastelloy Round Bar Price List Price in India
Alloy C276 Rod Price $29.00-$30.00/ Kilogram
C22 Flat Bars Prices $1,000.00-$2,000.00/ Ton
Alloy C276 Hex Bars Price Per Kg $400.00-$550.00/ Ton
ASTM B574 C276 Bright bars Price $20.00-$70.00/ Kilogram

Frequently Asked Questions About Hastelloy C276 Round Bar

What is the Nickel Alloy C276 Material?
Nickel Alloy C276, also referred to as Hastelloy C27, is a nickel chromium molybdenum superalloy with tensile strength and corrosion resistance.
What are the key differences between the Alloy C276 and 316 Stainless Steel?
The Alloy C276 offers superior quality in corrosion protection and strength to 316 stainless steel, which is less expensive than this, though less resistant to acids and chlorides.
Is Hastelloy C276 round bar stainless steel?
No, the Hastelloy C276 round bar is not a stainless steel, but it is a nickel-based superalloy to be used in extreme chemical and high temperature conditions.
