Duplex Stainless Steel UNS 2205 Round Bars<br />

Duplex 2205 Round Bar

Table of Content

Get In Touch

Duplex stainless steels are two phase alloys with a combination of the ferritic and austenitic properties providing corrosion resistance and mechanical strength for tough environments.Duplex 2205 round bar (also referred to as duplex 2205, UNS S31803/S32205, 1.4462 2205) is a duplex grade that is nitrogen strengthened. The intermediate between austenitic and ferritic (neither 304 nor 430) stainless steels are referred to as duplex. In S31803 bars, the microstructure is austenitic islands in a continuous ferritic matrix. The 2205 duplex stainless steel round bar was designed to overcome typical issues with corrosion of 300-series austenitic grades, and matches the requirements of ASTM 2205 specification.

The common advantages of 2205 duplex rod are; a wide range of corrosion resistance; great resistance against chloride stress-corrosion cracking; high strength, good weldability and formability, resistance against sulphide stress cracking; and high resistance to chloride pitting and crevice corrosion. Close attention should be paid to chloride stress-corrosion cracking in duplex metallurgy. The duplex 2205 welding rod is very strong and reliable in welding. The goal in welding any duplex stainless steel is to get fusion and heat-affected regions identical to the base metal in terms of corrosion and impact toughness sufficient to be used in service.

Duplex Steel 2205 Round Bar, ASTM A276 Duplex SS Round Bars, Duplex Steel 2205 ASTM A276 Threaded Bar, Suppliers Of ASTM A276 Duplex Steel Round Bar, Duplex 2205 Round Bar Supplier In Mumbai.

Lakshya Steel is a supplier of Duplex 2205 ASTM A276 round bars otherwise known as duplex2205, 1.4462 2205, and UNS S32205/S31803 that are controlled in quality. In reference, the American Iron and Steel Institute (AISI) classifies the grades of stainless as 200, 300, 400 and 600 series.

Additional Pipe and Plate products that Lakshya Steel produces and keeps stock of are seamless pipes of carbon steel like A106 Gr. B, A53 Gr. B, API 5L Gr. B, seamless and ERW pipes, A333 Gr. 3/6, alloy steel pipes of ASTM A335, P5, P9, P11, P22, P91.

High strength can limit machinability as the Duplex 2205 round bar is found to be useful in service. It is also hard and this further enhances the burden required in bending and forming and could necessitate more capacity equipment than austenitic stainless steels.Duplex 2205 is not used at temperatures above 300 C due to brittle forming phase and under -50 C due to ductile-to brittle.

Duplex 2205 is the most widely used grade of duplex (ferritic/austenitic) stainless steel in the industry. This alloy is nitrogen strengthened and this is also an advantage since nitrogen is used in enhancing corrosion resistance especially in welded structures. It contains higher Cr3Mo3Ni balance and a pitting resistance of about 35.8 – than 316L and 317L. Heat treated, ASTM 2205 has a microstructure consisting of about equal parts austenite and ferrite, the strength and corrosion resistance of which are typical of 2205 round bar.

Duplex Steel UNS S32205 Hex Bar, SAF 2205 Round Rods, Duplex DIN 1.4462 Flat Bars Dealer, ASME SA276 Duplex S32205 Round Bar Supplier in India, ASTM A276 Duplex Steel S32205 Rods Exporter.

At Lakshya Steel, we source premium raw materials to manufacture Duplex SS 2205 round bars. Each duplex 2205 round bar is packed for transit in sturdy wooden crates with protective plastic wrapping to ensure safe delivery. We offer high-quality 2205 round bars at competitive prices for engineering and industrial applications, contact us to place an order for duplex2205 (UNS S32205/S31803, 1.4462) today.

Types of Duplex Steel 2205 Round Bar

Explore the main forms of duplex 2205 round bar, hot rolled, cold drawn, forged, and peeled to match strength and finish needs. Each type of duplex2205 bar is engineered for corrosion resistance and dependable performance.

Molybdenum ASTM B387 Type 361 Bar

UNS S32205 Duplex Round Bar

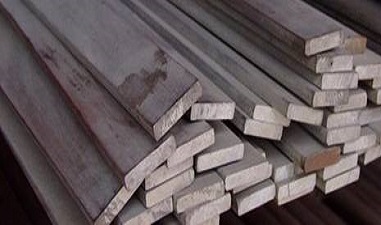

Alloy 718 Flat Bar

ASTM A276 UNS S31803 Flat Bar

Grade 364 Round Bar

ASTM A479 S31803 Duplex Rod

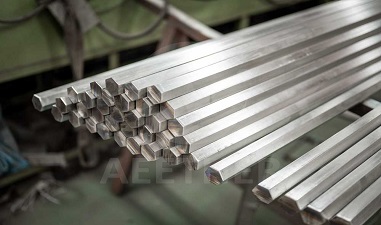

Inconel 718 Hex Bar

DSS 1.4462 Hexagonal Bar

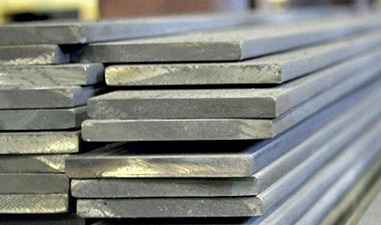

DIN 2.4668 Rectangle Bar

2205 Duplex Rectangle Bar

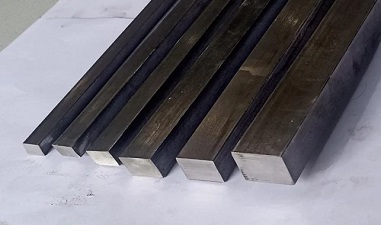

Nicrofer 5219 Square Bar

Duplex F51 Square Bar

Duplex Steel S32205 Round Bar Specification

Get the key specs for UNS S32205 / S31803 duplex 2205 round bar as per ASTM 2205 (A276/A479) and related standards. Dimensions, finish options, and testing requirements ensure consistent quality in critical service.

Specifications ASTM A276, A479 / ASME SA276, SA479
Standard EN, DIN, JIS, ASTM, BS, ASME, AISI
Range 3.17 MM TO 350 MM DIA
Diameter 25mm to 152mm
Length 1 to 6 Meters, Custom Cut Lengths
Finish Bright, Polish & Black
Form Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wiremesh, Billet, Ingot, Forging Etc.
Condition Cold Drawn & Polished Cold Drawn, Centreless Ground & Polished

ASTM 2205 Duplex Round Bar Equivalent Grades

Find global cross-references for 2205 round bars including UNS S32205/S31803 and EN 1.4462 2205. Use these equivalents to streamline sourcing across regions and standards.

STANDARD WERKSTOFF NR. UNS
Duplex 2205 1.4462 S31803 / S32205

Mechanical Properties of 2205 Duplex Bar

Get the key numbers like tensile strength, yield strength, hardness, and elongation for duplex 2205 round bar. These properties explain why duplex2205 outperforms common 300-series in demanding conditions.
Grades Density (g/cm 3) Density (lb/in 3) Melting Point (°C) Melting Point (°F)
S31803 / S32205 7.805 0.285 1420 – 1465 2588 – 2669

Duplex Stainless 2205 Round Bar Physical Properties

Find practical data for 1.4462 (2205) like density, modulus of elasticity, thermal expansion, and conductivity. Physical data helps with weight estimates, heat effects, and fit-up during fabrication.
Grades Density (g/cm 3) Density (lb/in 3) Melting Point (°C) Melting Point (°F)
S31803 / S32205 7.805 0.285 1420 – 1465 2588 – 2669

Heat Treatment for 1.4462 2205 Duplex Rod

Follow recommended solution-annealing ranges and cooling practices to keep the duplex phase balance and corrosion resistance of ASTM 2205 bars intact.
Step Details
Process Solution Annealing
Temperature Range
  • 1025°C to 1100°C
  • 1877°F to 2012°F
Duration 30 minutes to 1 hour
Cooling Method Rapid cooling (water quenching or air cooling)
Post-Heat Treatment Avoid exposure to temperatures above 600°C (1112°F)
Welding Considerations Essential to anneal after welding to restore properties

UNS S32205 Duplex Round Bar Weight Calculation Formula

Use a simple formula to calculate the weight of UNS S32205 round bar by diameter and length. Accurate weights help with material planning and logistics.
Conversion / Formula Calculation
ROUND dia.mm² × 0.004143 = Weight in lbs. per foot
ROUND dia.mm² × 0.006165 = Weight in kilograms per metre
HEXAGON size mm² × 0.00457 = Weight in lbs. per foot
HEXAGON size mm² × 0.006798 = Weight in kilograms per metre
SQUARE size mm² × 0.00527 = Weight in lbs. per foot
SQUARE size mm² × 0.000785 = Weight in kilograms per metre
U.K. tons U.K. tons per sq. inch (tons f/in²) × 15.4443 = Mega Pascals (MPa)
Newton Newton per sq. millimeter (N/mm²) × 0.064749 = U.K. tons per sq. inch
Metres to feet Metres to feet × 3.2809
Feet to metres Feet to metres × 0.3048
Mega Pascals (MPa) Mega Pascals (MPa) × 0.64749 = U.K. tons f per square inch

Duplex 2205 Round Bar Size Chart

Browse standard diameters and typical cut lengths available for duplex 2205 round bar. The chart makes it easy to select stock sizes or plan custom machining.
Duplex 2205 Round bar Type SIZES (mm) SIZES (Inches) ISO Tolerance
2205 Duplex Stainless Steel Cold Drawn and Polish Round Bar 3.00 – 75.00 1/8″ – 3.00″ h8-h9-h10-h11
Duplex SS 2205 Cold Drawn and Ground Bar 10.00 – 75.00 5/6″ – 2.50″ h8-h9-h10-h11
UNS S32205 Peeled and Polished Round Bar 40.00 – 150.00 1.50″ – 6.00″ h11, h11-DIN 1013
Duplex 2205 Peeled and Ground Bar 20.00 – 50.00 3/4″ – 2.00″ h9-h10-h11

2205 Duplex Stainless Steel Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).

The sizes of 2205 Duplex Stainless Steel Bars can also be selected when using the THD model.

Duplex 2205 Round bar Size & Dimensions of Duplex 2205
Metric US Bar ASTM/ Canadian Japanese
Bar Size Diam. (mm) Bar Size Diam. (Inch) Bar Size Diam. (mm2) Bar Size Diam. (mm)
5 5 #2 0.250 10M 100 6 6
5.5 5.5 #3 0.375 15M 200 10 10
6 6 #4 0.500 20M 300 13 13
7 7 #5 0.625 25M 500 16 16
8 8 #6 0.750 30M 700 19 19
9 9 #7 0.875 35M 1000 22 22
10 10 #8 1.000 45M 1500 25 25
11 11 #9 1.125 55M 2500 29 29
12 12 #10 1.250 32 32
14 14 #11 1.375 35 35
16 16 #12 1.500 38 38
18 18 #13 1.625 41 41
20 20 #14 1.750 44 44
22 22 #15 1.875 48 48
25 25 #16 2.000 51 51
28 28 #18 2.250 57 57
32 32
36 36
40 40
44 44
50 50

Surface finishes of Duplex Steel UNS S32205 Round Bar

Compare common finishes like hot rolled, cold drawn, turned and ground, peeled and reeled for UNS S32205 bars. Finish selection affects tolerance, surface smoothness, and corrosion behavior.
CD Cold drawn P Polished
BD Bright drawn SRE Slit rolled edge
CG Centreless ground HF Hot finished
CF Cold finished HRAP Hot rolled annealed and pickled
P&T Peeled and turned RT Rough turned/peeled
ST Smooth turned PR Peeled and reeled

1.4462 Duplex 2205 Round Bar Length

Review typical supply lengths and cut-to-size options for 1.4462 2205 round bar. Standard and custom lengths reduce waste and simplify installation.
System Standard Length
USA 40 feet
Metric System 9 – 12 metres

Tolerances of SAF 2205 Round Bar

Understand dimensional tolerances for SAF 2205 round bar on diameter, ovality, and straightness. Tight tolerances support precision machining and repeatable assembly.
Tolerances for Cold Drawn Duplex Steel UNS S32205 Round Bar
Shape / Section Size, diameter or width across flats Permitted variation
mm mm
Round ≥6 ≦ 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80
> 80 ≦ 100		 + 0 to – 0.070
+ 0 to – 0.085
+ 0 to – 0.100
+ 0 to – 0.120
+ 0 to – 0.140
Flat (thickness) < 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80		 + 0 to – 0.110
+ 0 to – 0.130
+ 0 to – 0.250
+ 0 to – 0.350
Flat (width) < 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80
> 80 ≦ 100
> 100 ≦ 130
> 130 ≦ 160
> 160 ≦ 320		 + 0 to – 0.110
+ 0 to – 0.130
+ 0 to – 0.160
+ 0 to – 0.190
+ 0 to – 0.220
+ 0 to – 0.350
+ 0 to – 1.00
+ 1.00 to – 1.00
Square and
hexagon		 ≥ 6 ≦ 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80
> 80 ≦ 105		 + 0 to – 0.090
+ 0 to – 0.110
+ 0 to – 0.130
+ 0 to – 0.160
+ 0 to – 0.250

Tolerances of Turned SAF 2205 Round Bar (BS 970-3)

Turned Duplex 2205 Round Bar Tolerances
Duplex 2205 Round Bar Size, diameter Permitted variation
mm mm
≧ 6 ≦ 18
> 18 ≦ 30
> 30 ≦ 50
> 50 ≦ 80
> 80 ≦ 120
> 120 ≦ 180
> 180 ≦ 250
> 250 ≦ 315
> 315 ≦ 400
> 400		 + 0 to – 0.070
+ 0 to – 0.085
+ 0 to – 0.100
+ 0 to – 0.120
+ 0 to – 0.140
+ 0 to – 0.160
+ 0 to – 0.185
+ 0 to – 0.210
+ 0 to – 0.230
+ 0 to – 0.250
Tolerances of Precision UNS S32205 Duplex Round Bar (BS 970-3)
Precision 1.4462 Duplex 2205 Round Bar Tolerances
Section Size,
diameter		 Permitted overall variation
Class A Class B Class C
mm mm mm mm
Round ≧ 6 <75 0.05 0.025 0.013
Tolerance of 2205 Duplex Stainless Steel Bright Round Bar (BS EN ISO 286-2 )
Duplex 2205 Round Bar Tolerance ISO “H” Series in MM
NOMINAL SIZE H5 H6 H7 H8 h9 H10 H11 H12
DIAMETER mm
~ to 3 +0.004/0 +0.006/0 +0.01/0 +0.014/0 +0.025/0 +0.04/0 +0.06/0 +0.1/0
over 3 to 6 +0.005/0 +0.008/0 +0.012/0 +0.018/0 +0.03/0 +0.048/0 +0.075/0 +0.12/0
over 6 to 10 +0.006/0 +0.009/0 +0.015/0 +0.022/0 +0.036/0 +0.058/0 +0.09/0 +0.15/0
over 10 to 18 +0.008/0 +0.011/0 +0.018/0 +0.027/0 +0.043/0 +0.07/0 +0.11/0 +0.18/0
over 18 to 30 +0.009/0 +0.013/0 +0.021/0 +0.033/0 +0.052/0 +0.084/0 +0.13/0 +0.21/0
over 30 to 50 +0.011/0 +0.016/0 +0.025/0 +0.039/0 +0.062/0 +0.1/0 +0.16/0 +0.25/0
over 50 to 80 +0.013/0 +0.019/0 +0.03/0 +0.046/0 +0.074/0 +0.12/0 +0.19/0 +0.3/0
over 80 to 120 +0.015/0 +0.022/0 +0.035/0 +0.054/0 +0.087/0 +0.14/0 +0.22/0 +0.35/0
over 120 to 180 +0.018/0 +0.025/0 +0.04/0 +0.063/0 +0.1/0 +0.16/0 +0.25/0 +0.4/0
over 180 to 250 +0.02/0 +0.029/0 +0.046/0 +0.072/0 +0.115/0 +0.185/0 +0.29/0 +0.46/0

How does Duplex 2205 compare to other Stainless Steels?

Let’s understand how duplex 2205 stacks up against 304/316 in strength, SCC resistance, and life-cycle cost. The comparison highlights where duplex2205 delivers the best value.
Properties Duplex 2205 304 Stainless Steel 316 Stainless Steel
Tensile Strength 620 MPa (90,000 psi) 520 MPa (75,000 psi) 570 MPa (82,000 psi)
Corrosion Resistance Excellent (especially in chlorides) Good (limited in chlorides) Better than 304 (due to molybdenum)
Weldability Requires careful techniques Generally easy to weld Generally easy to weld
Applications Oil & gas, marine, chemicals Kitchen equipment, food processing Marine, chemical handling
Heat Treatment Solution annealed Not typically required Not typically required

2205 Duplex Stainless Steel Round Bar Price

Get indicative pricing trends for 2205 duplex stainless steel round bar by size and finish. Factors like nickel content, finish type, and order quantity influence final cost.
Price List of Duplex 2205 Round Bar Duplex Steel S31803 Bar Price in India (INR) DSS UNS S32205 Round Bar Price in USD
ASTM A276 UNS S31803 Round Bar Price ₹ 4310 $ 25.04 USD
Price of ASTM A479 UNS S32205 Bar 10.0mm dia x 500mm long ₹ 1035 $ 65.05 USD
Duplex Steel UNS S31803 Rod Price Per Kg ₹ 1309 $ 60.16 USD
Duplex UNS S32205 F60 Bar Price ₹ 1000 $ 75.10 USD
UNS S32205 Rod Price Per Kg in India ₹ 1666 $ 35.92 USD
UNS S31803 Material Flat Bar Price List ₹ 1220 $ 59.04 USD
Duplex UNS S31803 F51 Material Round Rod Price ₹ 4019 $ 19.15 USD
2205 Stainless Steel Round Bar Price Per Kg ₹ 1900 $ 56.45 USD
Price of Duplex 1.4462 Square Bar ₹ 1600 $ 38.10 USD
Duplex SS 2205 Hex Bar / Rod 10mm (A/F) x 2000mm Price ₹ 3000 $ 81.30 USD

Frequently Asked Questions About Duplex 2205 Round Bar

What are the key properties of Duplex Steel UNS 2205 Round Bars?

Duplex Steel UNS 2205 Round Bars are known for their high tensile strength, resistance to pitting and crevice corrosion, and good impact toughness. They also have high resistance to stress corrosion cracking and chloride environments.

Can Duplex Stainless Steel UNS 2205 Round Bars be customized?

Yes, Duplex Stainless Steel UNS 2205 Round Bars can be customized in terms of size, grade, and specification to meet specific requirements of different projects and applications.
