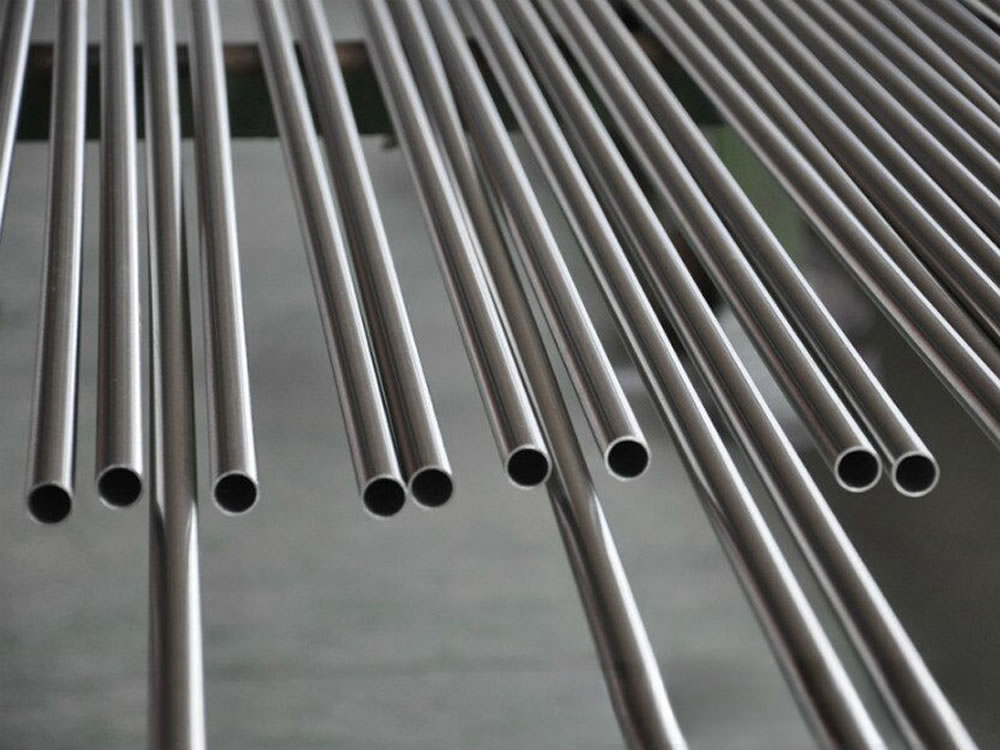

ASTM A269 TP 316/316L Stainless Steel Tubes

Home > Stainless Steel 316 Tube > ASTM A296 TP 316 SS Tubes

ASTM A269 TP 316/316L Stainless Steel Tubes

Home » ASTM A269 TP 316/316L Stainless Steel Tubes

Table of Content

Get A Quote

ASTM A269 TP 316/316L SS Seamless Tubing Supplier & Exporter

Lakshya Steel is a trusted manufacturer, supplier & exporter of products of ASTM A269 TP 316 and ASTM A269 TP 316L stainless steel seamless tubing. Our 316 SS seamless tubes are made with high-quality alloying elements, which give them high strength, corrosion resistance & high performance in high-pressure and temperature environments. Our ASTM A269 tubing available in all sizes, thicknesses & specifications to use in various applications of chemical, petrochemical, pharmaceutical, food processing and marine markets.

Why Choose Lakshya Steel for ASTM A269 TP 316 / 316L SS Tubes?

  • Seamless tubing of high quality produced according to the ASTM A269 standard.
  • Great pitting and corrosive resistance, and chemical resistance.
  • Came in both ASTM A269 TP 316 and ASTM A269 TP 316L.
  • Large size range with modified lengths and specifications.
  • Maintaining a huge stock of 316 SS tubes and expedited global delivery.
  • Offering high-quality tubes with material test certificates (MTC).

Connect with our team to request the best quotes, custom sizes & product catalog to fulfil your specific needs.

What Is ASTM A269 TP316 Stainless Steel Tube?

The ASTM A269 TP316 stainless steel tubes are austenitic stainless steel tubes. The tubes are used in applications such as chemical operations, pharmaceuticals, food industries, hydraulic and heat exchangers because of their high strength, hardiness, and high resistance to chlorides. Molybdenum is added to these tubes, and therefore, they have a superior pitting and crevice corrosion resistance to that offered by 304 stainless steel grades. ASTM A269 316 Stainless Steel Bright Annealed Tubes are highly resistant to pitting and crevice corrosion, therefore they are tolerable in chloride-prone conditions. This grade does not need post-weld annealing, which increases fabrication ease. We manufacture according to the international standard of quality our SA 269 TP 316 Round Tubes & they are used in the field of coastal architectural fittings, boat hardware, heat exchangers, laboratory equipment and benches.

Lakshya Steel produces and exports a complete range of ASTM A269 TP 316 / TP316L stainless steel seamless tubes, which have been produced with high precision of its dimensions and external surface, internal surface, and are highly corrosion resistant, which are suitable in harsh environments.

Difference Between TP316 and TP316L

  • ASTM A269 TP316 → Normal grade of carbon, which is very good in high strength and use in high temperatures.
  • ASTM A269 TP316L → Low-carbon variant, does not allow precipitation of carbide during welding; pharma and hygienic should be used.
Send An Enquiry for ASTM A269 TP316/316L SS Tubes

Specification of ASTM A269 Grade TP316 Stainless Steel Tubes

The table below gives the full information on specifications about the ASTM A269 Grade TP316 Stainless Steel Tubes.

Grade 316
Specifications ASTM A269 / ASME SA269
O.D. Supplier of Welded/ ERW from 10 to 114.3 millimeter O.D. Seamless: 6 to 114.3 millimeter O.D.
Form “U” Shape, Square, Pan Cake Coils, Coiled, Rectangular, Round, Hydraulic Tube.
End Screwed, Beveled, Threaded, Plain
Length Single Random, Double Random, Cut to length
Schedule Thickness Ranges SCH XS, SCH 40, SCH 80S, SCH 5, SCH 80, SCH XXS, SCH 160, SCH10, All Schedules
Type Welded | CDW | ERW | DOM | Seamless | Fabricated | CEW
Surface Finish 2B, No.1, No.4, No.8 Mirror Finish
Sizes 5.0 milimeter – 1219.2 milimeter
Thickness 0.8 mm TO 4 mm Thk. Suppliers in India
Delivery Condition Annealed & Pickled, Polished, Bright & Annealed, etc

Grade Specification Comparison of ASTM A269 TP 316 Stainless Steel Seamless Tubes

This material comes in a different form, and the grades below that are given below.

Grade UNS No Old British (BS) Euronorm (EN) EN Number Swedish SS Japanese JIS
316 S31600 316S31 X5CrNiMo17-12-2 1.4401 2347 SUS 316

ASTM A269 Gr TP316 Seamless Tube Price List

ASTM A269 TP316 seamless tubes are priced according to their size, wall thickness, finish and the market conditions. An approximate price chart will be provided below to enable buyers to know the general prices in India.

(Prices may vary ±10–15% depending on quantity and customization.)

Tube Size (OD) Wall Thickness (mm) Finish Grade Approx. Price (₹/Meter)
6.35 mm (1/4″) 1.0 mm Annealed TP316 ₹ 180 – ₹ 220
12.7 mm (1/2″) 1.2 mm BA Finish TP316 ₹ 250 – ₹ 320
19.05 mm (3/4″) 1.5 mm Mill Finish TP316 ₹ 320 – ₹ 380
25.4 mm (1″) 1.6 mm Polished TP316 ₹ 420 – ₹ 480
38.1 mm (1.5″) 2.0 mm Annealed TP316 ₹ 550 – ₹ 620
50.8 mm (2″) 2.0–2.5 mm BA Finish TP316 ₹ 750 – ₹ 900
76.2 mm (3″) 2.5–3.0 mm Mill Finish TP316 ₹ 1,200 – ₹ 1,450

Chemical Structure of ASTM A269 TP 316 Stainless Steel Seamless Tubes

The chemical structure defines the strength of the material, and the detailed chemical composition is given below.

GRADE C MN SI P S CR MO NI N
316 Min – – – 0 – 16.0 2.00 10.0 –
Max 0.08 2.0 0.75 0.045 0.03 18.0 3.00 14.0 0.10

Mechanical Analysis of ASTM A269 TP 316 Stainless Steel Seamless Tubes

The mechanical properties helps you to understand the hardness and tensile strength of the material given below.

Grade Tensile Str
(MPa) min		 Yield Str
0.2% Proof
(MPa) min		 Elong
(% in 50mm) min		 Hardness
Rockwell B (HR B) max Brinell (HB) max
316 515 205 40 95 217
316L 485 170 40 95 217
316H 515 205 40 95 217

ASTM A269 TP 316 Stainless Steel Seamless Tubes Physical Properties

Understand in detail the physical properties of ASTM A269 TP 316 seamless tubes.

GRADE DENSITY
(KG/M3)		 ELASTIC MODULUS
(GPA)		 MEAN CO-EFF OF THERMAL EXPANSION (ΜM/M/°C) THERMAL CONDUCTIVITY
(W/M.K)		 SPECIFIC HEAT 0-100°C
(J/KG.K)		 ELEC RESISTIVITY
(NΩ.M)
0-100°C 0-315°C 0-538°C AT 100°C AT 500°C
316 8000 193 15.9 16.2 17.5 16.3 21.5 500 74

ASTM A269 Grade 316 Heat Exchanger Tubes Weight Chart

The weight chart helps you to understand the exact dimensions of the material to estimate the final weight & exact price.

O.D. (inch.) Avg. Wall (inch.) D/t Ratio I.D. (inch.) Tube Cross Sectional Area (in2) Internal Area (in2)
0.250 0.020 12.50 0.210 0.0145 0.0346
0.250 0.028 8.93 0.194 0.0195 0.0296
0.250 0.035 7.14 0.180 0.0236 0.0254
0.250 0.049 5.10 0.152 0.0309 0.0181
0.250 0.065 3.85 0.120 0.0378 0.0113
0.375 0.020 18.75 0.335 0.0223 0.0881
0.375 0.028 13.39 0.319 0.0305 0.0799
0.375 0.035 10.71 0.305 0.0374 0.0731
0.375 0.049 7.65 0.277 0.0502 0.0603
0.375 0.065 5.77 0.245 0.0633 0.0471
0.500 0.020 25.00 0.460 0.0302 0.1662
0.500 0.028 17.86 0.444 0.0415 0.1548
0.500 0.035 14.29 0.430 0.0511 0.1452
0.500 0.049 10.20 0.402 0.0694 0.1269
0.500 0.065 7.69 0.370 0.0888 0.1075
0.500 0.083 6.02 0.334 0.1087 0.0876
0.625 0.020 31.25 0.585 0.0380 0.2688
0.625 0.028 22.32 0.569 0.0525 0.2543
0.625 0.035 17.86 0.555 0.0649 0.2419
0.625 0.049 12.76 0.527 0.0887 0.2181
0.625 0.065 9.62 0.495 0.1144 0.1924
0.625 0.083 7.53 0.459 0.1413 0.1655
0.625 0.095 6.58 0.435 0.1582 0.1486
0.625 0.109 5.73 0.407 0.1767 0.1301
0.750 0.028 26.79 0.694 0.0635 0.3783
0.750 0.035 21.43 0.680 0.0786 0.3632
0.750 0.049 15.31 0.652 0.1079 0.3339
0.750 0.065 11.54 0.620 0.1399 0.3019
0.750 0.083 9.04 0.584 0.1739 0.2679
0.750 0.095 7.89 0.560 0.1955 0.2463
0.750 0.109 6.88 0.532 0.2195 0.2223
0.750 0.120 6.25 0.510 0.2375 0.2043
0.875 0.020 43.75 0.835 0.0537 0.5476
0.875 0.028 31.25 0.819 0.0745 0.5268
0.875 0.035 25.00 0.805 0.0924 0.5090
0.875 0.049 17.86 0.777 0.1272 0.4742
0.875 0.065 13.46 0.745 0.1654 0.4359
0.875 0.083 10.54 0.709 0.2065 0.3948
0.875 0.095 9.21 0.685 0.2328 0.3685
0.875 0.109 8.03 0.657 0.2623 0.3390
0.875 0.120 7.29 0.635 0.2846 0.316/ 316L7
1.000 0.028 35.71 0.944 0.0855 0.6999
1.000 0.035 28.57 0.930 0.1061 0.6793
1.000 0.049 20.41 0.902 0.1464 0.6390
1.000 0.065 15.38 0.870 0.1909 0.5945
1.000 0.083 12.05 0.834 0.2391 0.5463
1.000 0.095 10.53 0.810 0.2701 0.5153
1.000 0.109 9.17 0.782 0.3051 0.4803
1.000 0.120 8.33 0.760 0.3318 0.4536
1.000 0.134 7.46 0.732 0.3646 0.4208
1.250 0.035 35.71 1.180 0.1336 1.0936
1.250 0.049 25.51 1.152 0.1849 1.0423
1.250 0.065 19.23 1.120 0.2420 0.9852
1.250 0.083 15.06 1.084 0.316/ 316L3 0.9229
1.250 0.095 13.16 1.060 0.3447 0.8825
1.250 0.109 11.47 1.032 0.3907 0.8365
1.250 0.120 10.42 1.010 0.4260 0.8012
1.250 0.134 9.33 0.982 0.4698 0.7574
1.500 0.035 42.86 1.430 0.1611 1.6061
1.500 0.049 30.61 1.402 0.2234 1.5438
1.500 0.065 23.08 1.370 0.2930 1.4741
1.500 0.083 18.07 1.334 0.3695 1.3977
1.500 0.095 15.79 1.310 0.4193 1.3478
1.500 0.109 13.76 1.282 0.4763 1.2908
1.500 0.120 12.50 1.260 0.5202 1.2469
1.500 0.134 11.19 1.232 0.5750 1.1921
1.500 0.148 10.14 1.204 0.6286 1.1385
1.750 0.035 50.00 1.680 0.1886 2.2167
1.750 0.049 40.82 1.902 0.3003 2.8413
1.750 0.065 26.92 1.620 0.3441 2.0612
1.750 0.083 21.08 1.584 0.4347 1.9706
1.750 0.095 18.42 1.560 0.4939 1.9113
1.750 0.109 16.06 1.532 0.5619 1.8433
1.750 0.120 14.58 1.510 0.6145 1.7908
1.750 0.134 13.06 1.482 0.6803 1.7250
1.750 0.148 11.82 1.454 0.7449 1.6604
1.750 0.165 10.61 1.420 0.8216 1.5837
2.000 0.035 57.14 1.930 0.2161 2.9255
2.000 0.049 40.82 1.902 0.3003 2.8413
2.000 0.065 30.77 1.870 0.3951 2.7465
2.000 0.083 24.10 1.834 0.4999 2.6417
2.000 0.095 21.05 1.810 0.5685 2.5730
2.000 0.109 18.35 1.782 0.6475 2.4941
2.000 0.120 16.67 1.760 0.7087 2.4328
2.000 0.134 14.93 1.732 0.7855 2.3561
2.000 0.148 13.51 1.704 0.8611 2.2805
2.000 0.165 12.12 1.670 0.9512 2.1904

ASTM A269 Grade 316 Coiled Tubing Equivalent Material Grade

The following information gives the details of the equivalent material grade of the ASTM A269 Grade 316 coiled tubing.

Grade UNS
No		 Old British Euronorm Swedish
SS		 Japanese
JIS
BS En No Name
316 S31600 316S31 58H, 58J 1.4401 X5CrNiMo17-12-2 2347 SUS 316

Size Chart for ASTM A269 SS 316/316L Tubes

The size chart helps you to order the exact material for your components, and the chart below gives the exact information about the size chart.

Size
OD, Inches		 Wall
Dec-In.		 BW
Ga.		 Weight
Lbs/Ft.		 ID
1/8 0.028 22 0.0290 0.069
0.035 20 0.0336 0.055
3/16 0.028 22 0.0478 0.131
1/4 0.020 25 0.0491 0.210
0.028 22 0.0664 0.194
0.032 21 0.0745 0.187
0.035 20 0.0804 0.180
0.049 18 0.1052 0.152
0.065 16 0.1284 0.120
5/16 0.035 20 0.1039 0.242
0.049 18 0.1382 0.214
0.065 16 0.1722 0.182
3/8 0.028 22 0.1038 0.319
0.035 20 0.1271 0.305
0.049 18 0.1706 0.277
0.065 16 0.2152 0.245
7/16 0.049 18 0.2036 0.340
1/2 0.020 25 0.1025 0.460
0.035 20 0.1738 0.430
0.049 18 0.2360 0.402
0.065 16 0.3020 0.370
5/8 0.035 20 0.2205 0.555
0.049 18 0.3014 0.527
0.065 16 0.3888 0.495
3/4 0.035 20 0.2673 0.680
0.049 18 0.3668 0.652
0.065 16 0.4755 0.620
0.083 14 0.5913 0.584
7/8 0.049 18 0.4323 0.777
0.065 16 0.5623 0.745
0.120 11 0.9676 0.635
1 0.035 20 0.3607 0.930
0.049 18 0.4977 0.902
0.065 16 0.6491 0.870
0.083 14 0.8129 0.834
0.120 11 1.1278 0.760
1-1/4 0.120 11 1.4480 1.010

ASTM A269 TP 316 Stainless Steel Seamless Tubes Outside Diameter & Tolerance

The ASTM A269 TP 316 Stainless Steel Seamless Tubes tolerance level and outside diameters specification data are given below.

Nominal
Pipe
Size
(inches)
Outside
Diameter
Schedule
5S
10S
40S
80S
(mm)
(inches)
Wall Thickness and Weight
mm
(in)
kg/m
mm
(in)
kg/m
mm
(in)
kg/m
mm
(in)
kg/m
1/8
10.3
0.405
–
–
1.25
(0.049)
0.28
1.73
(0.068)
0.37
2.42
(0.095)
0.47
1/4
13.7
0.540
–
–
1.66
(0.065)
0.49
2.24
(0.088)
0.63
3.03
(0.119)
0.80
3/8
17.2
0.675
–
–
1.66
(0.065)
0.63
2.32
(0.091)
0.85
3.20
(0.126)
1.10
1/2
21.3
0.840
1.65
(0.065)
0.81
2.11
(0.083)
1.00
2.77
(0.109)
1.27
3.74
(0.147)
1.62
3/4
26.7
1.050
1.65
(0.065)
1.02
2.11
(0.083)
1.28
2.87
(0.113)
1.68
3.92
(0.154)
2.20
1
33.4
1.315
1.65
(0.065)
1.30
2.77
(0.109)
2.09
3.38
(0.133)
2.50
4.55
(0.179)
3.24
1 1/4
42.2
1.660
1.65
(0.065)
1.66
2.77
(0.109)
2.69
3.56
(0.140)
3.39
4.86
(0.191)
4.47
1 1/2
48.3
1.900
1.65
(0.065)
1.91
2.77
(0.109)
3.11
3.69
(0.145)
4.06
5.08
(0.200)
5.41
2
60.3
2.375
1.65
(0.065)
2.40
2.77
(0.109)
3.93
3.92
(0.154)
5.45
5.54
(0.218)
7.49
2 1/2
73.0
2.875
2.11
(0.083)
3.69
3.05
(0.120)
5.26
5.16
(0.203)
8.64
7.01
(0.276)
11.4
3
88.9
3.500
2.11
(0.083)
4.52
3.05
(0.120)
6.46
5.49
(0.216)
11.3
7.62
(0.300)
15.3
3 1/2
101.6
4.000
2.11
(0.083)
5.18
3.05
(0.120)
7.41
5.74
(0.226)
13.6
8.08
(0.318)
18.6
4
114.3
4.500
2.11
(0.083)
5.84
3.05
(0.120)
8.37
6.02
(0.237)
16.1
8.56
(0.337)
22.3
5
141.3
5.563
2.77
(0.109)
9.46
3.41
(0.134)
11.6
6.56
(0.258)
21.8
9.53
(0.375)
31.0
6
168.3
6.625
2.77
(0.109)
11.3
3.41
(0.134)
13.9
7.12
(0.280)
28.3
10.98
(0.432)
42.6
8
219.1
8.625
2.77
(0.109)
14.8
3.76
(0.148)
20.0
8.18
(0.322)
42.5
12.70
(0.500)
64.6
10
273.1
10.750
3.41
(0.134)
22.7
4.20
(0.165)
27.8
9.28
(0.365)
60.4
12.70
(0.500)
81.5
12
323.9
12.750
3.97
(0.156)
31.3
4.58
(0.180)
36.1
9.53
(0.375)
73.9
12.70
(0.500)
97.4

ASTM A269 TP316/316L SS Tubes Surface Finish

The surface finish depends on the buyer’s requirements, and the different finishes are given below.

Surface Finish Internal Surface(ID) External Surface(OD)
Roughness Average(RA) Roughness Average(RA)
μ inch μm μ inch μm
BA Beight Annealed 40,32,25,20 1.0,0.8,0.6,0.5 32 0.8
AP Annealed & Pickled Not defined Not defined 40 or Not defined 1.0 or Not defined
EP Electro Polish 15,10,7,5 0.38,0.25,0.20;0.13 32 0.8
MP Mechanical Polish 40,32,25,20 1.0,0.8,0.6,0.5 32 0.8

Applications of ASTM A269 TP316 SS Tubes

Chemical Processing Plants Oil & Gas Pipelines Pharmaceutical Industry Food & Beverage Processing Marine Applications

FAQs

What is ASTM A269 TP316/316L stainless steel tubing used for?
The most common use of this 316 stainless steel is for heat exchanges, chemical handling, instrumentation, and corrosion-resistant piping.
What is the difference between ASTM A269 TP316 and TP316L?
The TP316L has a lower carbon composition than TP316, providing better weldability and reducing the risk of any corrosion.
What sizes and finishes are available in ASTM A269 TP316/316L tubes?
These ASTM A269 TP316/316L tubes come in different sizes from small instrumentation sizes to large process tubes, with many benefits like annealed, polished, or mill finish.
Are ASTM A269 TP316/316L tubes suitable for high-temperature applications?
Yes, they are capable of operating in moderately high temperatures and provide good strength and corrosion resistance when operating in high-temperature conditions.
Request A Quote

    Talk To Us – We’re Here To Help

    [hidden post-url default:shortcode[_post_url]]

    Fill the Captcha

    Our Products

    Our Latest Blogs

    Send Us Message

    Got a  question? We'd love to hear from you. Send us a message & we'll respond as soon as possible.

      [hidden post-url default:shortcode[_post_url]]

      Fill the Captcha

      Enquire Now
      close slider

        Enquire Now

        Need pricing or technical specs?

        [hidden post-url default:shortcode[_post_url]]

        Fill the Captcha
