ASTM A269 TP 304/304L Stainless Steel Tubes

Table of Content

Get A Quote
Lakshya Steel is a well-known manufacturer, supplier and exporter of ASTM A269 TP304 and TP304L Stainless Steel Tubing, and through which people can get solutions to their tubing needs. Our 304 stainless steel tubes are prepared using high quality raw materials and under strict quality control, the quality of our product is assured to be of better performance in low and high temperature conditions.

Our product, ASTM A269 SS tube, which comes in seamless and welded, offers engineers a variety of choices regarding the structure and the processes of their buildings. They also come with various finishes such as annealed, bright annealed, polished and mill finish. All the tubes are subjected to non-destructive or hydrostatic electric test to ascertain dimensional accuracy, mechanical strength, and long-term reliability.

Being a leading manufacturer of stainless steel tubes, we have a massive stock of ASTM A269 stainless steel tubing, in grades, TP304, TP304L, TP316, TP316L and TP201, with bespoke sizes, wall thicknesses, and cut-to-length. Ready stock guarantees the speed of delivery and competitive prices on bulk purchases and project-based products. Contact us for ASTM A269 304/304L stainless steel tubing requirements for your project needs.

About ASTM A269 TP 304/304L Stainless Steel Tubes

ASTM A269 TP304/304L Stainless Steel Tubes are a high-performance austenitic solution to tubing, which has excellent strength, high corrosion resistance and a stable performance at a broad temperature range. These tubes are made with a nominal wall thickness and high level of dimensional accuracy, which makes them applicable in high-pressure and high-temperature applications. TP304 tubes provide excellent resistance to low and high temperature corrosion and the low-carbon TP304L version reduces carbide precipitation during welding so that it can be welded better and last longer.



Buy ASTM A269 TP304 Stainless Steel Seamless Tubing, 304 SS Bright Annealed Tubes and A269 TP304 SS Welded Tubes in precise cut-to-size options for your project requirements.

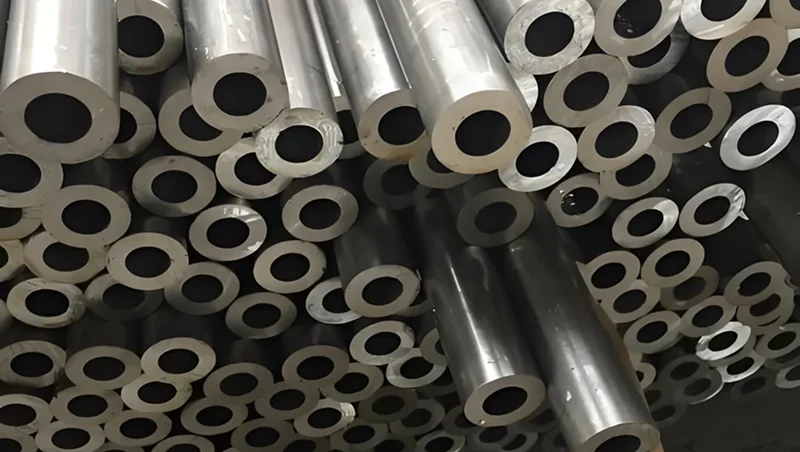

ASTM A269 304 SS Seamless Tubes

ASTM A269 304 SS Seamless Tubes

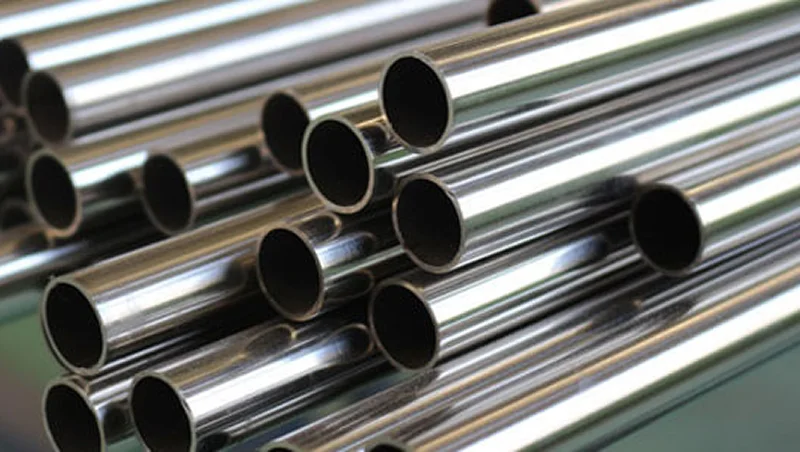

ASTM A269 304 SS Welded Tubes

ASTM A269 304 SS Welded Tubes

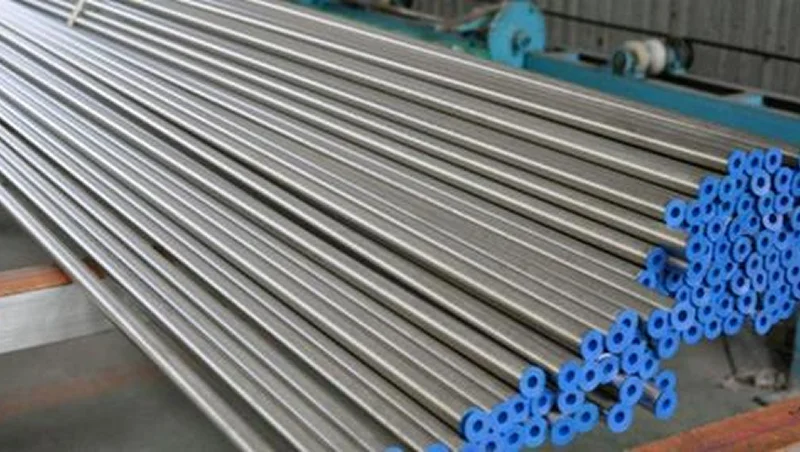

ASTM A269 304 SS Bright Annealed Tubes

ASTM A269 304 SS Bright Annealed Tubes

Lakshya Steel is providing good quality and custom cut-to-size A269 TP304 Stainless Steel Seamless Tubing, 304 SS Bright Annealed Tubes, and A269 TP304 SS Welded Tubes. They also have a high level of tolerance against chloride and oxidizing environments, thus making them more acceptable in marine and industrial applications. Cold working greatly enhances their hardness and tensile strength, and thus they are reliable with regard to their performance even in the face of harsh mechanical demands. They are also very effective in boilers, hydraulic lines, and heat exchanger units because they have very high temperatures of melting point and their resistance to mechanical stress.

Send An Enquiry for ASTM A269 TP304/304L SS Tubes

ASTM A269 TP304 Stainless Steel Tubing Specifications

The Stainless Steel tubing specifications detailed information are given below.

Specifications ASTM A269 / ASME SA269
Grade 304
Form “U” Shape, Square, Pan Cake Coils, Coiled, Rectangular, Round, Hydraulic Tubes.
Type Welded | CDW | ERW | DOM | Seamless | Fabricated | CEW Supplier in India
Sizes 5.0 milimeter – 1219.2 milimeter
Length Single Random, Double Random, Cut to length
Schedule Thickness Ranges SCH XS, SCH 40, SCH 80S, SCH 5, SCH 80, SCH XXS, SCH 160, SCH10, All Schedules
Surface Finish 2B, No.1, No.4, No.8 Mirror Finish
Delivery Condition Annealed & Pickled, Polished, Bright & Annealed, etc
O.D. Welded/ ERW: 10 to 114.3 millimeter O.D.
Seamless: 6 to 114.3 millimeter O.D.
Supplier in Thickness Range from 0.8 mm TO 4 mm Thk.
End Screwed, Beveled, Threaded, Plain

Dimensional Chart for ASTM A269 304 SS Boiler Tubes

The dimension chart gives detailed knowledge of this material is given below.

O.D. (inch) Avg. Wall (inch) D/t Ratio I.D. (inch) Tube Cross Sectional Area (in2) Internal Area (in2)
0.250 0.020 12.50 0.210 0.0145 0.0346
0.250 0.028 8.93 0.194 0.0195 0.0296
0.250 0.035 7.14 0.180 0.0236 0.0254
0.250 0.049 5.10 0.152 0.0309 0.0181
0.250 0.065 3.85 0.120 0.0378 0.0113
0.375 0.020 18.75 0.335 0.0223 0.0881
0.375 0.028 13.39 0.319 0.0305 0.0799
0.375 0.035 10.71 0.305 0.0374 0.0731
0.375 0.049 7.65 0.277 0.0502 0.0603
0.375 0.065 5.77 0.245 0.0633 0.0471
0.500 0.020 25.00 0.460 0.0302 0.1662
0.500 0.028 17.86 0.444 0.0415 0.1548
0.500 0.035 14.29 0.430 0.0511 0.1452
0.500 0.049 10.20 0.402 0.0694 0.1269
0.500 0.065 7.69 0.370 0.0888 0.1075
0.500 0.083 6.02 0.334 0.1087 0.0876
0.625 0.020 31.25 0.585 0.0380 0.2688
0.625 0.028 22.32 0.569 0.0525 0.2543
0.625 0.035 17.86 0.555 0.0649 0.2419
0.625 0.049 12.76 0.527 0.0887 0.2181
0.625 0.065 9.62 0.495 0.1144 0.1924
0.625 0.083 7.53 0.459 0.1413 0.1655
0.625 0.095 6.58 0.435 0.1582 0.1486
0.625 0.109 5.73 0.407 0.1767 0.1301
0.750 0.028 26.79 0.694 0.0635 0.3783
0.750 0.035 21.43 0.680 0.0786 0.3632
0.750 0.049 15.31 0.652 0.1079 0.3339
0.750 0.065 11.54 0.620 0.1399 0.3019
0.750 0.083 9.04 0.584 0.1739 0.2679
0.750 0.095 7.89 0.560 0.1955 0.2463
0.750 0.109 6.88 0.532 0.2195 0.2223
0.750 0.120 6.25 0.510 0.2375 0.2043
0.875 0.020 43.75 0.835 0.0537 0.5476
0.875 0.028 31.25 0.819 0.0745 0.5268
0.875 0.035 25.00 0.805 0.0924 0.5090
0.875 0.049 17.86 0.777 0.1272 0.4742
0.875 0.065 13.46 0.745 0.1654 0.4359
0.875 0.083 10.54 0.709 0.2065 0.3948
0.875 0.095 9.21 0.685 0.2328 0.3685
0.875 0.109 8.03 0.657 0.2623 0.3390
0.875 0.120 7.29 0.635 0.2846 0.3167
1.000 0.028 35.71 0.944 0.0855 0.6999
1.000 0.035 28.57 0.930 0.1061 0.6793
1.000 0.049 20.41 0.902 0.1464 0.6390
1.000 0.065 15.38 0.870 0.1909 0.5945
1.000 0.083 12.05 0.834 0.2391 0.5463
1.000 0.095 10.53 0.810 0.2701 0.5153
1.000 0.109 9.17 0.782 0.3051 0.4803
1.000 0.120 8.33 0.760 0.3318 0.4536
1.000 0.134 7.46 0.732 0.3646 0.4208
1.250 0.035 35.71 1.180 0.1336 1.0936
1.250 0.049 25.51 1.152 0.1849 1.0423
1.250 0.065 19.23 1.120 0.2420 0.9852
1.250 0.083 15.06 1.084 0.3043 0.9229
1.250 0.095 13.16 1.060 0.3447 0.8825
1.250 0.109 11.47 1.032 0.3907 0.8365
1.250 0.120 10.42 1.010 0.4260 0.8012
1.250 0.134 9.33 0.982 0.4698 0.7574
1.500 0.035 42.86 1.430 0.1611 1.6061
1.500 0.049 30.61 1.402 0.2234 1.5438
1.500 0.065 23.08 1.370 0.2930 1.4741
1.500 0.083 18.07 1.334 0.3695 1.3977
1.500 0.095 15.79 1.310 0.4193 1.3478
1.500 0.109 13.76 1.282 0.4763 1.2908
1.500 0.120 12.50 1.260 0.5202 1.2469
1.500 0.134 11.19 1.232 0.5750 1.1921
1.500 0.148 10.14 1.204 0.6286 1.1385
1.750 0.035 50.00 1.680 0.1886 2.2167
1.750 0.049 40.82 1.902 0.3003 2.8413
1.750 0.065 26.92 1.620 0.3441 2.0612
1.750 0.083 21.08 1.584 0.4347 1.9706
1.750 0.095 18.42 1.560 0.4939 1.9113
1.750 0.109 16.06 1.532 0.5619 1.8433
1.750 0.120 14.58 1.510 0.6145 1.7908
1.750 0.134 13.06 1.482 0.6803 1.7250
1.750 0.148 11.82 1.454 0.7449 1.6604
1.750 0.165 10.61 1.420 0.8216 1.5837
2.000 0.035 57.14 1.930 0.2161 2.9255
2.000 0.049 40.82 1.902 0.3003 2.8413
2.000 0.065 30.77 1.870 0.3951 2.7465
2.000 0.083 24.10 1.834 0.4999 2.6417
2.000 0.095 21.05 1.810 0.5685 2.5730
2.000 0.109 18.35 1.782 0.6475 2.4941
2.000 0.120 16.67 1.760 0.7087 2.4328
2.000 0.134 14.93 1.732 0.7855 2.3561
2.000 0.148 13.51 1.704 0.8611 2.2805
2.000 0.165 12.12 1.670 0.9512 2.1904

Available Types of ASTM A269 TP304 Seamless Tubes

This material comes in different types, and the information about this is provided in a data table below.

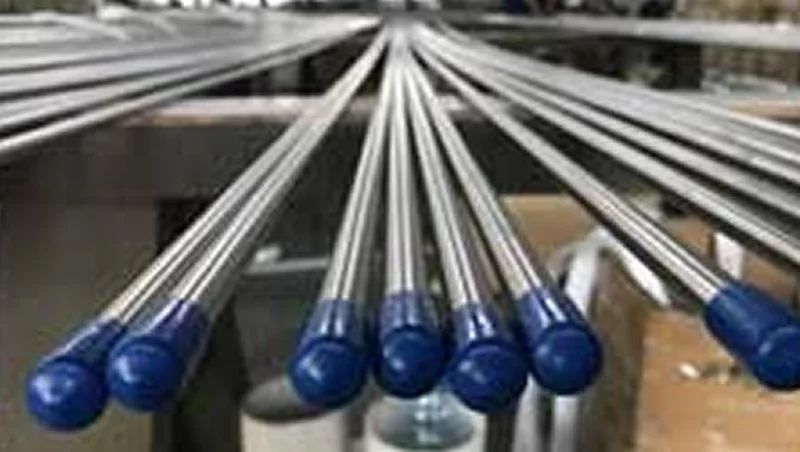

TP304 8mm x 0.5mm Bright Annealed Welded & Seamless Stainless Steel Tube

TP304 Bright Annealed Seamless Stainless Steel Tube

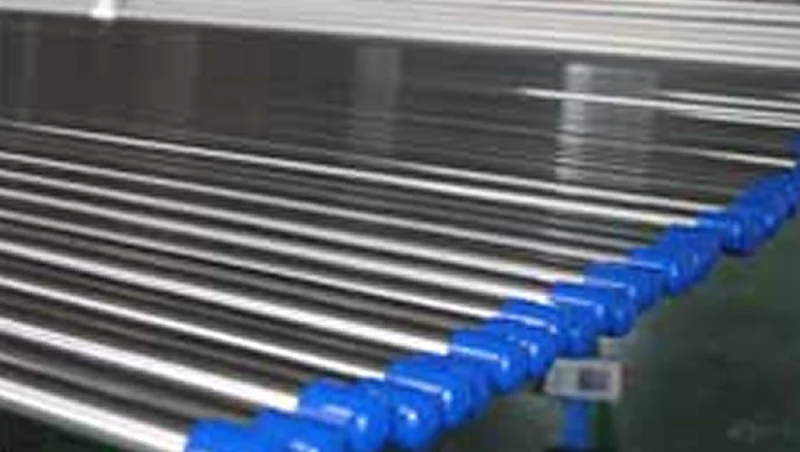

ASTM A269 TP304 Seamless Stainless Steel Tube

ASTM A269 TP304 Seamless Stainless Steel Tube

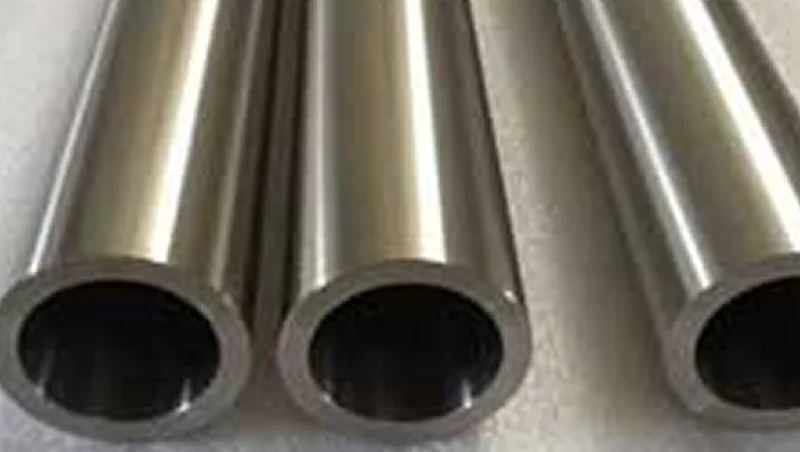

Seamless Tube ASTM A269 TP304

Seamless Tube ASTM A269 TP304

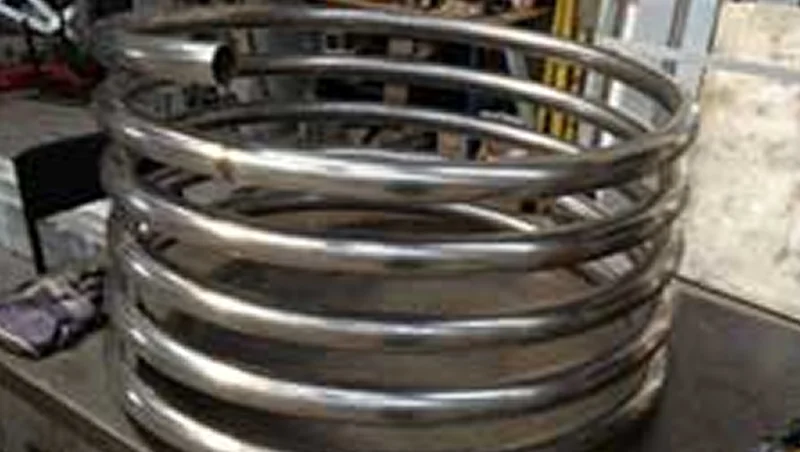

ASTM A269 TP304 Seamless Stainless Steel Coil Tube

ASTM A269 TP304 Seamless Coil Tube

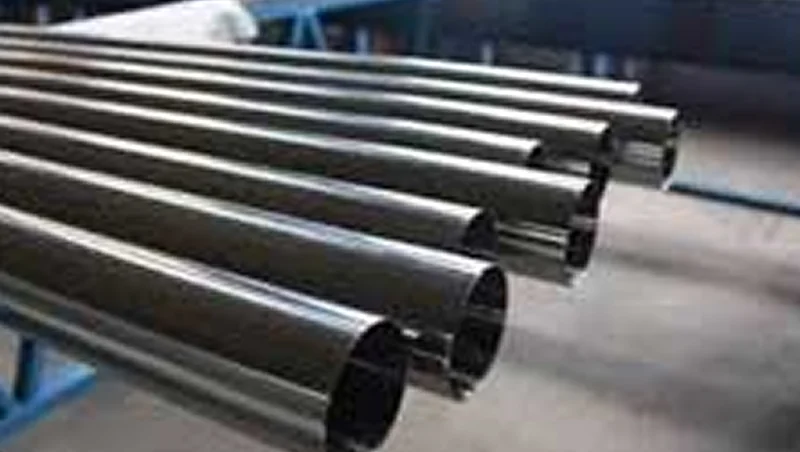

ASTM A269 TP304 Bright Finish Stainless Steel Tube

ASTM A269 TP304 Bright Finish Stainless Tube

2mm ASTM A269 TP304 Welded Stainless Steel Pipe

ASTM A269 TP304 Welded Stainless Steel Pipe

Tolerance Chart of ASTM A269 SS TP304 Tubes

The data chart gives information on the tolerance level of this material.

Size
Inches
Tolerances, Inches
OD,
Inches
Wall
Ovality
2 x Tol., In.
Cut Length
(b), In.
Less than 1/2
±0.005
±15%
——
+1/8
–0
Over 1/2 to 1-1/2
±0.005
±10%
–0.065
Over 1-1/2 to 3-1/2
±0.010
±10%
–0.095
+3/16
–0
Over 3-1/2 to 5-1/2
±0.015
±10%
–0.150
Over 5-1/2 to 8
±0.030
±10%
——

A269 Stainless Steel TP304 Seamless Tubes Chemical Composition

The chemical composition of this material detailed information is given below.

Grade C Mn Si P S Cr Mo Ni N
304 min. – – – – – 18.0 – 8.0 –
max. 0.08 2.0 0.75 0.045 0.030 20.0 10.5 0.10

ASTM A269 Gr TP304 SS Welded Tubes Mechanical Strengths

The mechanical properties give information on tensile strength, yield strength are given below.

Density 8.0 g/cm3
Melting Point 1400 °C (2550 °F)
Tensile Strength Psi – 75000 , MPa – 515
Yield Strength (0.2%Offset) Psi – 30000 , MPa – 205
Elongation 35 %

Size Range of ASME SA269 304 SS Tubing

The ASME SA269 304 SS Tubing comes in different sizes, and the information about this is given below.

Size
OD, Inches
BW
Ga.
Wall
Dec-In.
ID
Weight
Lbs/Ft.
1/8
22
0.028
0.069
0.0290
20
0.035
0.055
0.0336
3/16
22
0.028
0.131
0.0478
1/4
25
0.020
0.210
0.0491
22
0.028
0.194
0.0664
21
0.032
0.187
0.0745
20
0.035
0.180
0.0804
18
0.049
0.152
0.1052
16
0.065
0.120
0.1284
5/16
20
0.035
0.242
0.1039
18
0.049
0.214
0.1382
16
0.065
0.182
0.1722
3/8
22
0.028
0.319
0.1038
20
0.035
0.305
0.1271
18
0.049
0.277
0.1706
16
0.065
0.245
0.2152
7/16
18
0.049
0.340
0.2036
1/2
25
0.020
0.460
0.1025
20
0.035
0.430
0.1738
18
0.049
0.402
0.2360
16
0.065
0.370
0.3020
5/8
20
0.035
0.555
0.2205
18
0.049
0.527
0.3014
16
0.065
0.495
0.3888
3/4
20
0.035
0.680
0.2673
18
0.049
0.652
0.3668
16
0.065
0.620
0.4755
14
0.083
0.584
0.5913
7/8
18
0.049
0.777
0.4323
16
0.065
0.745
0.5623
11
0.120
0.635
0.9676
1
20
0.035
0.930
0.3607
18
0.049
0.902
0.4977
16
0.065
0.870
0.6491
14
0.083
0.834
0.8129
11
0.120
0.760
1.1278
1-1/4
11
0.120
1.010
1.4480

ASTM A269 TP 304L Stainless Steel Tubes Schedule Chart

The schedule chart gives the information on ASTM A269 TP 304L stainless steel tubes.

NB SIZES SCH 5 SCH 10 SCH 40 SCH 80 SCH 160
1/8″
1/4″
3/8″
1/2″
3/4″
1″
1 1/4″
1 1/2″
2″
2 1/2″
3″
4″
5″
6″

Physical Characteristics of ASTM A269 TP304 SS Tubes

The following tables highlight the physical characteristics of ASTM A269 TP304 SS tubes.

Grade Density (kg/m3) Elastic Modulus (GPa) Mean Coefficient of Thermal Expansion (m/m/0C) Thermal Conductivity (W/m.K) Specific Heat 0-1000C (J/kg.K) Electrical Resistivity (n.m)
0-1000C 0-3150C 0-5380C at 1000C at 5000C
304 8000 193 17.2 17.8 18.4 16.2 21.5 500 720

ASTM A269 TP304 Stainless Steel Round Tube Temperature Rating

The temperature rating helps to know the melting point, which is given below.

OD inches Ave. Wall inches Min Yield Strength (PSI) Min Tensile Strength (PSI) Theoretical Burst Pressure * (PSI) Working Pressure (PSI) 25% of Burst Theoretical Yield Point ** (PSI) Collapse Pressure *** (PSI)
0.250 0.020 30,000 75,000 14,286 3,571 5,714 4,416
0.250 0.028 30,000 75,000 21,649 5,412 8,660 5,967
0.250 0.035 30,000 75,000 29,167 7,292 11,667 7,224
0.250 0.049 30,000 75,000 48,355 12,089 19,342 9,455
0.250 0.065 30,000 75,000 81,250 20,313 32,500 11,544
0.375 0.020 30,000 75,000 8,955 2,239 3,582 3,029
0.375 0.028 30,000 75,000 13,166 3,292 5,266 4,145
0.375 0.035 30,000 75,000 17,213 4,303 6,885 5,077
0.375 0.049 30,000 75,000 26,534 6,634 10,614 6,816
0.375 0.065 30,000 75,000 39,796 9,949 15,918 8,597
0.500 0.020 30,000 75,000 6,522 1,630 2,609 2,304
0.500 0.028 30,000 75,000 9,459 2,365 3,784 3,172
0.500 0.035 30,000 75,000 12,209 3,052 4,884 3,906
0.500 0.049 30,000 75,000 18,284 4,571 7,313 5,304
0.500 0.065 30,000 75,000 26,351 6,588 10,541 6,786
0.500 0.083 30,000 75,000 37,275 9,319 14,910 8,307
0.625 0.020 30,000 75,000 5,128 1,282 2,051 1,859
0.625 0.028 30,000 75,000 7,381 1,845 2,953 2,568
0.625 0.035 30,000 75,000 9,459 2,365 3,784 3,172
0.625 0.049 30,000 75,000 13,947 3,487 5,579 4,335
0.625 0.065 30,000 75,000 19,697 4,924 7,879 5,591
0.625 0.083 30,000 75,000 27,124 6,781 10,850 6,910
0.625 0.095 30,000 75,000 32,759 8,190 13,103 7,734
0.625 0.109 30,000 75,000 40,172 10,043 16,069 8,639
0.750 0.028 30,000 75,000 6,052 1,513 2,421 2,156
0.750 0.035 30,000 75,000 7,721 1,930 3,088 2,669
0.750 0.049 30,000 75,000 11,273 2,818 4,509 3,664
0.750 0.065 30,000 75,000 15,726 3,931 6,290 4,749
0.750 0.083 30,000 75,000 21,318 5,330 8,527 5,905
0.750 0.095 30,000 75,000 25,446 6,362 10,179 6,637
0.750 0.109 30,000 75,000 30,733 7,683 12,293 7,453
0.750 0.120 30,000 75,000 35,294 8,824 14,118 8,064
0.875 0.020 30,000 75,000 3,593 898 1,437 1,340
0.875 0.028 30,000 75,000 5,128 1,282 2,051 1,859
0.875 0.035 30,000 75,000 6,522 1,630 2,609 2,304
0.875 0.049 30,000 75,000 9,459 2,365 3,784 3,172
0.875 0.065 30,000 75,000 13,087 3,272 5,235 4,126
0.875 0.083 30,000 75,000 17,560 4,390 7,024 5,152
0.875 0.095 30,000 75,000 20,803 5,201 8,321 5,807
0.875 0.109 30,000 75,000 24,886 6,221 9,954 6,543
0.875 0.120 30,000 75,000 28,346 7,087 11,339 7,100
1.000 0.028 30,000 75,000 4,449 1,112 1,780 1,633
1.000 0.035 30,000 75,000 5,645 1,411 2,258 2,027
1.000 0.049 30,000 75,000 8,149 2,037 3,259 2,796
1.000 0.065 30,000 75,000 11,207 2,802 4,483 3,647
1.000 0.083 30,000 75,000 14,928 3,732 5,971 4,567
1.000 0.095 30,000 75,000 17,593 4,398 7,037 5,159
1.000 0.109 30,000 75,000 20,908 5,227 8,363 5,827
1.000 0.120 30,000 75,000 23,684 5,921 9,474 6,336
1.000 0.134 30,000 75,000 27,459 6,865 10,984 6,963
1.250 0.035 30,000 75,000 4,449 1,112 1,780 1,633
1.250 0.049 30,000 75,000 6,380 1,595 2,552 2,260
1.250 0.065 30,000 75,000 8,705 2,176 3,482 2,958
1.250 0.083 30,000 75,000 11,485 2,871 4,594 3,719
1.250 0.095 30,000 75,000 13,443 3,361 5,377 4,213
1.250 0.109 30,000 75,000 15,843 3,961 6,337 4,776
1.250 0.120 30,000 75,000 17,822 4,455 7,129 5,207
1.250 0.134 30,000 75,000 20,468 5,117 8,187 5,742
1.500 0.035 30,000 75,000 3,671 918 1,469 1,367
1.500 0.049 30,000 75,000 5,243 1,311 2,097 1,896
1.500 0.065 30,000 75,000 7,117 1,779 2,847 2,487
1.500 0.083 30,000 75,000 9,333 2,333 3,733 3,136
1.500 0.095 30,000 75,000 10,878 2,719 4,351 3,559
1.500 0.109 30,000 75,000 12,754 3,188 5,101 4,043
1.500 0.120 30,000 75,000 14,286 3,571 5,714 4,416
1.500 0.134 30,000 75,000 16,315 4,079 6,526 4,881
1.500 0.148 30,000 75,000 18,439 4,610 7,375 5,336
1.750 0.035 30,000 75,000 3,125 781 1,250 1,176
1.750 0.049 30,000 75,000 3,864 966 1,546 1,434
1.750 0.065 30,000 75,000 6,019 1,505 2,407 2,146
1.750 0.083 30,000 75,000 7,860 1,965 3,144 2,711
1.750 0.095 30,000 75,000 9,135 2,284 3,654 3,080
1.750 0.109 30,000 75,000 10,672 2,668 4,269 3,504
1.750 0.120 30,000 75,000 11,921 2,980 4,768 3,832
1.750 0.134 30,000 75,000 13,563 3,391 5,425 4,242
1.750 0.148 30,000 75,000 15,268 3,817 6,107 4,645
1.750 0.165 30,000 75,000 17,430 4,357 6,972 5,124
2.000 0.035 30,000 75,000 2,720 680 1,088 1,032
2.000 0.049 30,000 75,000 3,864 966 1,546 1,434
2.000 0.065 30,000 75,000 5,214 1,303 2,086 1,887
2.000 0.083 30,000 75,000 6,788 1,697 2,715 2,387
2.000 0.095 30,000 75,000 7,873 1,968 3,149 2,715
2.000 0.109 30,000 75,000 9,175 2,294 3,670 3,092
2.000 0.120 30,000 75,000 10,227 2,557 4,091 3,384
2.000 0.134 30,000 75,000 11,605 2,901 4,642 3,751
2.000 0.148 30,000 75,000 13,028 3,257 5,211 4,111
2.000 0.165 30,000 75,000 14,820 3,705 5,928 4,542

ASTM A269 TP 304 / 304L Stainless Steel Tubes Applications

Pulp and Paper Mining Pharmaceutical Food and Beverage Oil and Gas Marine Industry Power Generation Chemical and Petrochemical Fertilizers

FAQs – ASTM A269 TP304 / 304L Stainless Steel Tubes

What is ASTM A269 TP304 stainless steel tubing used for?
It is commonly used in food processing, the pharmaceutical industry, heat exchangers, instrumental lines, and in general corrosion-resistant piping.

Do you provide cut-to-size ASTM A269 TP304/304L tubes?
Yes, it is possible to order ASTM A269 TP304/304L tubes in the desired length, depending on the needs.
What are the benefits of TP304 stainless steel tubing?
TP304 tubes have many features that include good corrosion resistance, strength, easy fabrication, and both high and low temperature service.
How do TP304 and TP304L tubes differ?
The carbon content of TP304L is lower than TP304, which makes it easier to weld and decreases the chances of getting carbide precipitated post-welding.
Request A Quote

    Talk To Us – We’re Here To Help

    [hidden post-url default:shortcode[_post_url]]

    Fill the Captcha

    Our Products

    Our Latest Blogs

    Send Us Message

    Got a  question? We'd love to hear from you. Send us a message & we'll respond as soon as possible.

      [hidden post-url default:shortcode[_post_url]]

      Fill the Captcha

      Enquire Now
      close slider

        Enquire Now

        Need pricing or technical specs?

        [hidden post-url default:shortcode[_post_url]]

        Fill the Captcha
