202 Stainless Steel Pipe, 202 SS Pipe, 202 SS Pipe Price, SS 202 Price Per kg, SS 202 Rate Per kg,SS 202 Round Pipe, 202 SS Pipe Rate, UNS S20200 Pipe, SS 202 Square Tube Supplier in India, Stainless Steel Pipe 202 Grade, SS 202 Pipe Weight Calculator

202 Stainless Steel Tube, 202 SS Tube, SS 202 Square Tube, Stainless Steel Pipe 202 Grade material, UNS S20200 Tube, SS 202 Round Tube, 202 Stainless Steel Square Tube, Stainless Steel 202 Square Tubing.

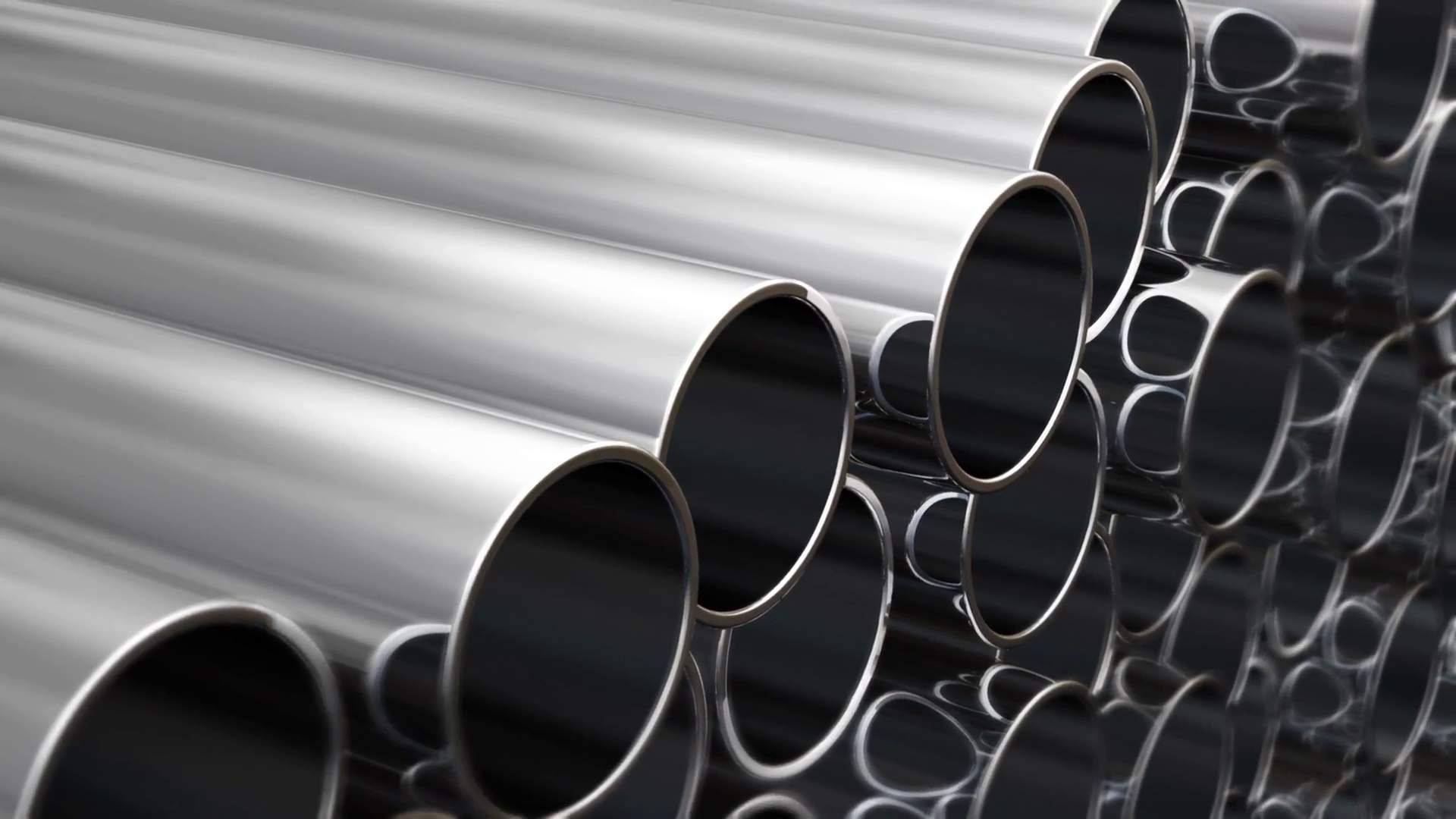

What is 202 Stainless Steel Pipe?

The 202 Stainless Steel Pipe is made of a type of stainless steel called grade 202. It has at least 16% chromium and 0.5% nickel in it. This stainless steel is not magnetic and can rust in coastal areas. So, it’s not good for use in the sea. It’s better for places where there is no air corrosion or pollution. This steel is tough, especially when it’s cold. The material of Stainless Steel Pipe 202 Grade gets harder as it cools down. It has a strong tensile strength of at least 515 Mpa and a yield strength of at least 275 MPa.

You can shape the SS 202 Pipe material, even when it’s soft. Before heating it, you need to soak the material at a temperature of 1038 degrees C and then cool it below 16 degrees C. This helps it transform fully into a hard type. The UNS S20200 Tube can be welded easily using common methods. You need AWS E/ER630 filler material for welding.

You can get SS 202 Square Pipe and pipes in different shapes. The shape, size, and dimensions can be changed based on what you need. The surface of the SS 202 Round Pipe can also be changed depending on what you’re using it for.

The 202 Stainless Steel Square Tube is safe for food and is used in things like restaurant equipment, cooking tools, and sinks. The Stainless Steel 202 Square Tubing is also used in buildings, trailers, and trains. You can get customized DIN 1.4373 Pipe from manufacturers at a good price, and they should be made with high-quality materials for the best performance. The Stainless Steel 202 Pipe is popular in many industries because it works well and is affordable.

202 Stainless Steel Pipe Specification

Sizes	1/2 inch Nominal Bore to 48 inch Nominal Bore
Outside Diameter:	6.00 mm Outside Diameter to 914.4 milimeter ODB
Thickness Range:	0.3mm to 50 mm, SCH 5, SCH10, SCH XXS, SCH 40, SCH XS, SCH 160, SCH 80, SCH 80S
Type:	ERW / Fabricated / Seamless /Welded /CDW
Length:	Single and Double Random or As Per Need
Form:	Round , Square and Rectangular Pipe
End:	Treaded, Plain and Beveled End
Outside Finish:	No.8, 2B, No.4, No.1 Mirror Finish or as per need
End Protection:	Caps of Plastic
Delivery Condition:	Cold Drawn, Polished, Annealed and Pickled, Bright Annealed,
Specials:	other than above Sizes and Specifications can be manufactured on customer request
Origin	Korea Origin, Indian Origin, Thailand Origin, US Origin, European Origin, Japanese Origin, Taiwan Origin
Mills	Korean Mills, Indian Mills, Japanese Mills, European Mills, US Mills
Inspection, Test Reports:	EN 10204 3.1, Mill Test Certificates, Non Destructive Test Reports, Chemical Reports, Third Party Mechanical Reports,NABL Approved Lab Reports, Destructive Test Report, PMI Test Reports, Inspection Reports, Visual Inspection Reports
Packing:	Packed in Steel Strips Bundled, Plastic Bags, Wooden Boxes or as per need

Chemical Properties of 202 Stainless Steel Pipe

Element	Content (%)
Iron, Fe	68
Chromium, Cr	17- 19
Manganese, Mn	7.50-10
Nickel, Ni	4-6
Silicon, Si	≤ 1
Nitrogen, N	≤ 0.25
Carbon, C	≤ 0.15
Phosphorous, P	≤ 0.060
Sulfur, S	≤ 0.030

Mechanical Properties of 202 Stainless Steel Pipe

Properties	Metric	Imperial
Tensile strength	515 MPa	74694 psi
Yield strength	275 MPa	39900 psi
Elastic modulus	207 GPa	30000 ksi
Poisson’s ratio	0.27-0.30	0.27-0.30
Elongation at break	40%	40%

Physical Properties of 202 Stainless Steel Tube

Physical Property	Value
Density	7.80 g/cm³
Thermal Expansion	17 x10^-6 /K
Modulus of Elasticity	200 GPa
Thermal Conductivity	15 W/m.K

Other Designations Of 202 stainless steel

Equivalent materials to grade 202 stainless steel Pipe are given below:

ASTM A276	ASTM A314	ASTM A412	ASTM A429
ASTM A473	ASTM A666	FED QQ-S-763	FED QQ-S-766
FED STD-66	SAE 30202	SAE J405 (30202)

SS 202 Price Per Kg

Grade	Size	Thread Length	Price
SS 202	1/8 in	1.5 in	$2.81 / each
	1/8 in	2 in	$3.46 / each
	1/8 in	2.5 in	$3.45 / each
	1/8 in	3 in	$3.82 / each
	1/8 in	3.5 in	$3.82 / each
	1/8 in	4 in	$3.82 / each
	1/8 in	4.5 in	$4.11 / each
	1/8 in	5 in	$4.11 / each
	1/8 in	5.5 in	$4.11 / each
	1/8 in	6 in	$4.11 / each
	1/8 in	7 in	$4.35 / each
	1/8 in	8 in	$4.81 / each
	1/8 in	9 in	$4.66 / each
	1/8 in	12 in	$4.81 / each
	1/8 in	Close Thread	$2.81 / each
	3/8 in	4.5 in	$4.92 / each
	3/8 in	12 in	$7.65 / each

SS 202 Pipe Weight Chart

Designation of Diameter		O/D	Nominal Wall Thickness
Designation of Diameter		DIA	SCH 80 S		SCH 80		SCH 100		SCH 120		SCH. 140		SCH.160		SCH.XXS
(A)	(B)	Meter MM	Wall Thk	WT Kg/Mtr	Wall Thk	WT Kg/Mtr	Wall Thk	WT Kg/Mtr	Wall Thk	WT Kg/Mtr	Wall Thk	WT Kg/Mtr	Wall Thk	WT Kg/Mtr	Wall Thk	WT Kg/Mtr
6	1/8	10.3	2.41	0.47
8	1/4	13.7	3.02	0.82
10	3/8	17.2	3.2	1.12
15	1/2	21.3	3.73	1.64									4.75	1.97	7.47	2.59
20	3/4	26.7	3.91	2.93									5.54	2.93	7.82	3.69
25	1	33.4	4.55	3.29									6.35	4.3	9.09	5.53
32	11/4	24.2	4.85	4.53									6.35	5.69	9.7	7.88
40	11/2	48.3	5.08	5.49									7.14	7.35	10.16	9.69
50	2	60.3	5.54	7.6									8.71	11.26	11.07	13.65
65	21/2	73	7.01	11.59									9.53	15.15	14.02	20.72
80	3	88.9	7.62	15.51									11.13	21.67	15.24	28.11
90	31/2	101.6	8.08	18.92											16.15	34.56
100	4	114.3	8.56	22.66					11.13	28.75			13.49	34.05	17.12	41.66
125	5	141.3	9.53	31.44					12.7	40.9			15.88	49.87	19.05	58.31
150	6	168.3	10.97	43.21					14.27	55.03			18.24	68.53	21.95	79.1
200	8	219.1	12.7	65.63			15.06	76.93	18.24	91.73	20.62	102.47	23.01	112.97	22.23	108
250	10	273.1	12.7	82.8	15.06	97.27	18.24	116.38	21.41	134.9	25.4	157.51	28.58	174.95	25.4	155.5
300	12	323.9	12.7	98.95	17.45	133.88	21.41	162.14	25.4	189.82	28.58	211.31	33.32	242.4	25.4	189.82
350	14	355.6	12.7	109.04	19.05	160.54	23.8	197.74	27.76	227.88	31.75	257.47	35.71	286.04
400	16	406.4	12.7	125.2	21.41	206.4	26.19	249.34	30.94	290.88	36.53	338.32	40.46	370.74
450	18	457.2	12.7	141.35	23.8	258.29	29.36	314.54	34.93	369.34	39.67	414.74	45.24	466.67
500	2C	508	12.7	157.51	26.19	315.97	32.54	387.41	38.1	448.3	44.45	515.94	49.99	573.31
550	22	558.8	12.7	173.66	28.57	379.7	34.92	457.83	41.27	535.17	47.62	609.3	53.97	682.57
600	24	609.6	12.7	189.82	30.94	448.3	38.89	555.76	46.02	649.44	52.37	730.72	59.51	819.7
650	26	660.4	12.7	205.97			(24.66D-t) t 1000 Wt/pam + formula WT Stainless Steel Pipe OD (mm) – W.T. (mm) XW.T. (mm) X 0.02466 = Kg. per mtr.

SS 202 Square Tube Weight Chart India

SQUARE	MM	0.65	0.80	0.90	0.95	1.00	1.20	1.50	2.00	2.50
	12.5 x 12.5	0.075	0.091	0.102	0.107	0.112	0.133	0.163
	20 x 20				0.176	0.184	0.220	0.271	0.354	0.433	0.508
	25 x 25				0.221	0.232	0.277	0.343	0.450	0.553	0.652
	30 x 30				0.267	0.280	0.335	0.415	0.516	0.673	0.796
	38 x 38				0.340	0.358	0.427	0.531	0.700	0.866	1.027
	40 x 40				0.358	0.376	0.450	0.559	0.738	0.898	1.084
	50 x 50					0.473	0.565	0.703	0.930	1.153	1.372

SS 202 Round Pipe Weight Chart

Outside Diameter (mm)	Thickness (mm)	Kg/Metre
21.3	2.5	1.16
21.3	3.2	1.43
26.9	2.5	1.51
26.9	3.2	1.87
33.7	2	1.56
33.7	2.6	1.99
33.7	3.2	2.41
33.7	4	2.93
42.4	2	2
42.4	2.6	2.55
42.4	3.2	3.09
42.4	4	3.79
42.4	5	4.62
42.4	6.3	5.62
48.3	2	2.29
48.3	2.5	2.83
48.3	3.2	3.56
48.3	4	4.37
48.3	5	5.34
48.3	6.3	6.53
60.3	2.5	3.57
60.3	3.2	4.51
60.3	4	5.55
60.3	5	6.82
60.3	6.3	8.4
60.3	8	10.33
60.3	10	12.42
76.1	2.5	4.54
76.1	3.2	5.75
76.1	4	7.11
76.1	5	8.77
76.1	6.3	10.86
76.1	8	13.45
76.1	10	16.32
88.9	3.2	6.76
88.9	4	8.38
88.9	5	10.3
88.9	6.3	12.85
88.9	8	15.98
88.9	10	19.48
101.6	2	4.92
101.6	3	7.3
101.6	4	9.64
101.6	5	11.93
114.3	3.6	9.83
114.3	4	10.89
114.3	5	13.5
114.3	6.3	16.8
127	3	9.17
127	4	12.15
127	5	15.04
139.7	3	10.13
139.7	4	13.4
139.7	5	16.6
139.7	6.3	20.7
139.7	8	26
139.7	10	32
168.3	3.6	14.64
168.3	4	16.23
168.3	5	20.1
168.3	6.3	25.2
168.3	8	31.6
168.3	10	39
168.3	12	46.3
193.7	5	23.3
193.7	6.3	29.1
193.7	8	36.6
193.7	10	45.3
193.7	12.5	55.9
219.1	5	26.4
219.1	6.3	33.1
219.1	8	41.6
219.1	10	51.6
219.1	12.5	63.7
244.5	4	23.73
244.5	5	29.5
244.5	6.3	37
244.5	8	46.7
244.5	10	57.8
244.5	12.5	71.5
244.5	16	90.2
273	5	33
273	6.3	41.4
273	8	52.3
273	10	64.9
273	12.5	80.3
273	16	101
323.9	4	31.6
323.9	5	39.3
323.9	6	47
323.9	6.3	49.3
323.9	8	62.3
323.9	10	77.4
323.9	12.5	96
323.9	16	121
355.6	8	68.6
355.6	10	85.2
355.6	12.5	106
355.6	16	134
406.4	6	59.2
406.4	8	78.6
406.4	10	97.8
406.4	12.5	121
406.4	16	154
457	6	66.7
457	8	88.6
457	10	110
457	12.5	137
457	16	174
508	6	74.3
508	8	98.6
508	10	123
508	12.5	153
508	16	194

202 Stainless Steel Square Tube Sizes In Mm

Size mm	kg/m	Size mm	kg/m
20 X 20 X 2.0	1.12	20 X 20 X 2.5	1.35
25 X 25 X 1.5	1.06	25 X 25 X 2.0	1.43
25 X 25 X 2.5	1.74	25 X 25 X 3.0	2.04
30 X 30 X 2.0	1.68	30 X 30 X 2.5	2.14
30 X 30 X 3.0	2.51	40 X 40 X 1.5	1.81
40 X 40 X 2.0	2.31	40 X 40 X 2.5	2.92
40 X 40 X 3.0	3.45	40 X 40 X 4.0	4.46
40 X 40 X 5.0	5.40	50 X 50 X 1.5	2.28
50 X 50 X 2.0	2.93	50 X 50 X 2.5	3.71
50 X 50 X 3.0	4.39	50 X 50 X 4.0	5.72
50 X 50 X 5.0	6.97	60 X 60 X 3.0	5.34
60 X 60 X 4.0	6.97	60 X 60 X 5.0	8.54
60 X 60 X 6.0	9.45	70 X 70 X 3.0	6.28
70 X 70 X 3.6	7.46	70 X 70 X 5.0	10.11
70 X 70 X 6.3	12.50	70 X 70 X 8	15.30
75 X 75 X 3.0	7.07	80 X 80 X 3.0	7.22
80 X 80 X 3.6	8.59	80 X 80 X 5.0	11.70
80 X 80 X 6.0	13.90	90 X 90 X 3.0	8.01
90 X 90 X 3.6	9.72	90 X 90 X 5.0	13.30
90 X 90 X 6.0	15.76	90 X 90 X 8.0	20.40
100 X 100 X 3.0	8.96	100 X 100 X 4.0	12.00
100 X 100 X 5.0	14.80	100 X 100 X 5.0	14.80
100 X 100 X 6.0	16.19	100 X 100 X 8.0	22.90
100 X 100 X 10	27.90	120 X 120 X 5	18.00
120 X 120 X 6.0	21.30	120 X 120 X 6.3	22.30
120 X 120 X 8.0	27.90	120 X 120 X 10	34.20
120 X 120 X 12	35.8	120 X 120 X 12.5	41.60
140 X 140 X 5.0	21.10	140 X 140 X 6.3	26.30
140 X 140 X 8	32.90	140 X 140 X 10	40.40
140 X 140 X 12.5	49.50	150 X 150 X 5.0	22.70
150 X 150 X 6.3	28.30	150 X 150 X 8.0	35.40
150 X 150 X 10	43.60	150 X 150 X 12.5	53.40
150 X 150 X 16	66.40	150 X 150 X 16	66.40
180 X 180 X 5	27.40	180 X 180 X 6.3	34.20
180 X 180 X 8	43.00	180 X 180 X 10	53.00
180 X 180 X 12.5	65.20	180 X 180 X 16	81.40
200 X 200 X 5	30.50	200 X 200 X 6	35.8
200 X 200 X 6.3	38.2	200 X 200 X 8	48.00
200 X 200 X 10	59.30	200 X 200 X 12.5	73.00
200 X 200 X 16	91.50	250 X 250 X 6.3	48.10
250 X 250 X 8	60.50	250 X 250 X 10	75.00
250 X 250 X 12.5	92.60	250 X 250 X 16	117.00
300 X 300 X 6.3	57.90	300 X 300 X 8	73.10
300 X 300 X 10	57.90	300 X 300 X 8	90.70
300 X 300 X 12.5	112.00	300 X 300 X 16	142.00
350 X 350 X 8	85.70	350 X 350 X 10	106.00
350 X 350 X 12.5	132.00	350 X 350 X 16	167.00
400 X 400 X 10	122.00	400 X 400 X 12	141.00
400 X 400 X 12.5mm	152.00	400 X 400 X 16	192

Stainless Steel 202 Rectangular Pipe Thickness

Size (mm)	Thickness (mm)	Kg/Metre
50 x 25	2	2.23
50 x 25	2.5	2.69
50 x 25	3	3.25
50 x 30	2.5	2.92
50 x 30	3	3.45
50 x 30	3.2	3.66
50 x 30	4	4.46
50 x 30	5	5.4
60 x 40	2.5	3.71
60 x 40	3	4.39
60 x 40	3.2	4.66
60 x 40	4	5.72
60 x 40	5	6.97
60 x 40	6.3	8.49
80 x 40	3	5.34
80 x 40	3.2	5.67
80 x 40	4	6.97
80 x 40	5	8.54
80 x 40	6.3	10.5
80 x 40	8	12.8
80 x 50	3	5.58
80 x 50	5	9.01
90 x 50	3	6.28
90 x 50	3.6	7.46
90 x 50	5	10.1
90 x 50	6.3	12.5
90 x 50	8	15.3
100 x 50	3	6.75
100 x 50	3.2	7.18
100 x 50	4	8.86
100 x 50	5	10.9
100 x 50	6.3	13.4
100 x 50	8	16.6
100 x 60	3	7.22
100 x 60	3.6	8.59
100 x 60	5	11.7
100 x 60	6.3	14.4
100 x 60	8	17.8
120 x 60	3.6	9.72
120 x 60	5	13.3
120 x 60	6.3	16.4
120 x 80	8	20.4
120 x 80	5	14.8
120 x 80	6.3	18.4
120 x 80	8	22.9
120 x 80	10	27.9
150 x 100	5	18.7
150 x 100	6.3	23.3
150 x 100	8	29.1
150 x 100	10	35.7
150 x 100	12.5	43.6
160 x 80	5	18
160 x 80	6.3	22.3
160 x 80	8	27.9
160 x 80	10	34.2
160 x 80	12.5	41.6
200 x 100	5	22.7
200 x 100	6.3	28.3
200 x 100	8	35.4
200 x 100	10	43.6
200 x 100	12.5	53.4
200 x 100	16	66.4
200 x 120	5	24.2
200 x 120	6.3	30.3
200 x 120	8	37.9
200 x 120	10	46.7
200 x 120	12.5	57.3
200 x 150	5	26.6
200 x 150	6.3	33.2
200 x 150	8	41.7
200 x 150	10	51.4
200 x 150	12.5	63.2
200 x 150	16	78.9
250 x 100	6.3	33.2
250 x 100	8	41.7
250 x 100	10	51.4
250 x 100	12.5	63.2
250 x 100	16	78.9
250 x 150	5	30.5
250 x 150	6.3	38.2
250 x 150	8	48
250 x 150	10	59.3
250 x 150	12.5	73
250 x 150	16	91.5
300 x 100	6.3	38.2
300 x 100	8	48
300 x 100	10	59.3
300 x 100	12.5	73
300 x 100	16	91.5
300 x 200	6.3	48.1
300 x 200	8	60.5
300 x 200	10	75
300 x 200	12.5	92.6
300 x 200	16	117
300 x 250	6.3	53
300 x 250	8	66.8
300 x 250	10	82.8
300 x 250	12.5	102
300 x 250	16	129
350 x 150	6.3	48.1
350 x 150	8	60.5
350 x 150	10	75
350 x 150	12.5	92.6
350 x 150	16	117
350 x 250	8	73.1
350 x 250	10	90.7
350 x 250	12.5	112
350 x 250	16	142
400 x 150	6.3	53
400 x 150	8	66.8
400 x 150	10	82.8
400 x 150	12.5	102
400 x 150	16	129
400 x 200	6.3	57.9
400 x 200	8	73.1
400 x 200	10	90.7
400 x 200	12.5	112
400 x 200	16	142
400 x 300	10	106
400 x 300	12.5	132
400 x 300	16	167
450 x 250	8	85.7
450 x 250	10	106
450 x 250	12.5	132
450 x 250	16	167

Stainless Steel 202 Square Tubing Gauge Chart

Size Range: ½” to 8″ Diameter
Wall Thickness: 0.049″to 0.375 Wall thickness
All Material Produced to ASTM A-554 Specification (Latest Revision)


Stainless Steel Square Tubing Gauge Chart	18	16	14	11	7	1/4	3/8
Inches	0.049	0.065	0.083	0.120	0.180	0.250	0.375

1/2	0.30	0.39
5/8	0.38	0.40
3/4	0.50	65.00	0.81	1.13
1	0.63	0.83	1.03	1.45	2.17
1-1/4	0.82	1.08	1.37	1.93	2.99
1-1/2	0.97	1.27	1.61	2.26	3.63	4.41
1-3/4	1.13	1.49	1.88	2.66	3.75
2	1.30	1.69	2.14	3.06	4.46	6.01
2-1/2			2.72	3.88	5.68	7.67
3			3.29	4.97	6.90	9.35
3-1/2				5.67	8.06	10.89
4				6.26	9.27	12.68	18.52
5				8.02	11.90	16.35	23.53
6				9.46	14.07	18.77	28.53
8						26.03	38.55

Request A Quote

Our Products

Our Latest Blogs

Stainless Steel 304 Pipes Comprehensive Guide

by user | Oct 28, 2024 | Corten steel

Stainless steel is a top choice in many industries because of its strength, durability, and resistance to rust. Among the various types, Stainless Steel 304 is one of the most widely used due to its variety and ability. It’s particularly popular in piping...

« Older Entries

Send Us Message

Got a question? We'd love to hear from you. Send us a message & we'll respond as soon as possible.
